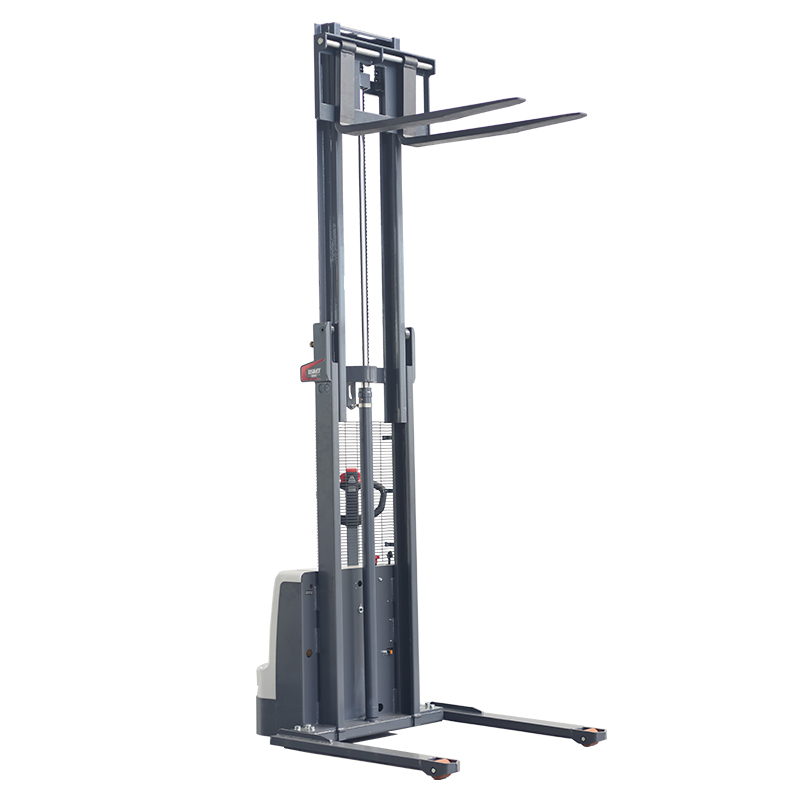

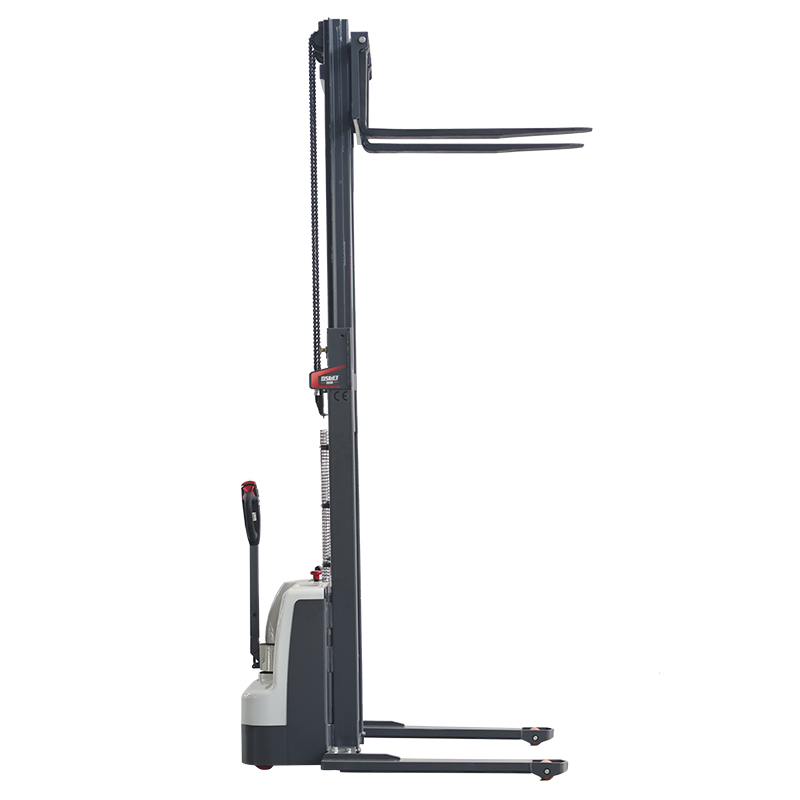

Walkie Power Stacker 1500KG with Straddle Leg Lifting Height 1600-3500mm

QES15E-SL

Get a Quote

INTRODUCTION

In small warehouses, production or retail environment and especially height limited space, the QES15E series walkie stacker from QSLIFT is the ideal stacker to optimize your daily work. This warehouse lifter with a mono mast and side operating design,ensures you excellent visibility.

The compact and light design is suitable for a variety light duty applications in warehouse. With the mono mast stacker we increase the ergonomy of the workplace at a very attractive price level. Each worker can place the pallets on a individual suitable hight. Increasing the productivity.

Advantages:

●Ergonomic, compact and safe long tiller design, with Smallest Turning Radius.

●Sideways long tiller for high stability and perfect view.

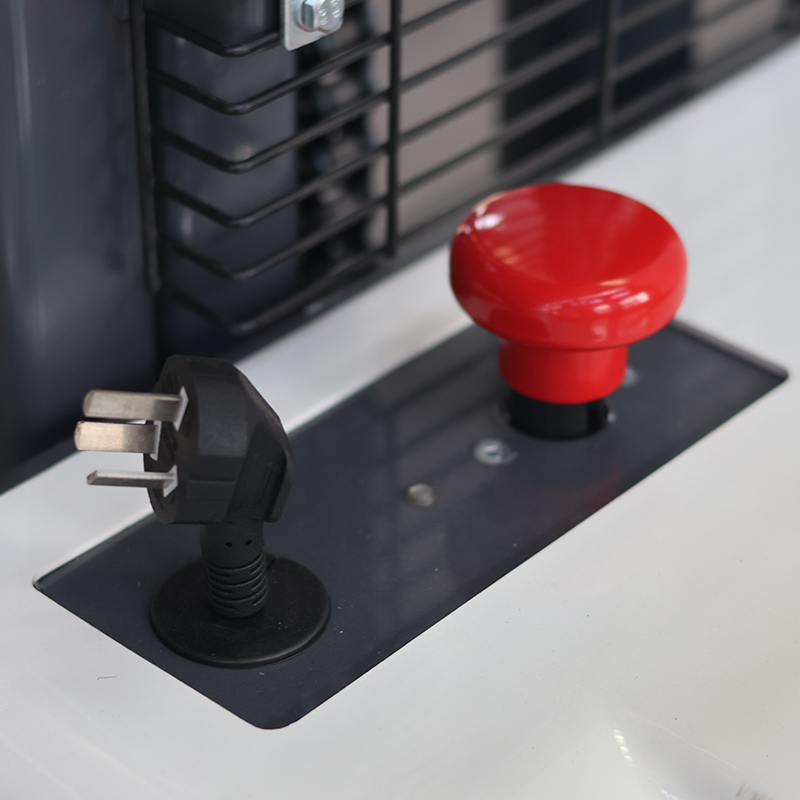

●Build-in Charger for high autonomy

●Reinforced and Robust Chassis for longer service life.

●Battery discharge indicator with automatic lift cut-off function for higher battery lifetime

Optional:

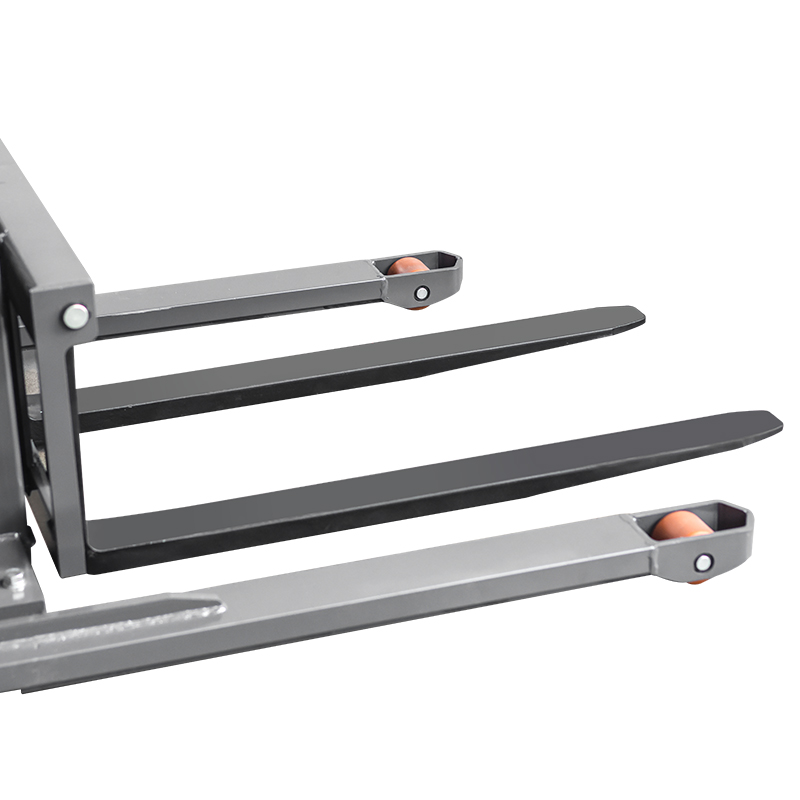

●Straddle Leg design, suitable for diverse pallet sizeds and more stablity.

●Canbus Magnetic key handle for more covenient oprating.

●Lithium Battery for quick Charging.

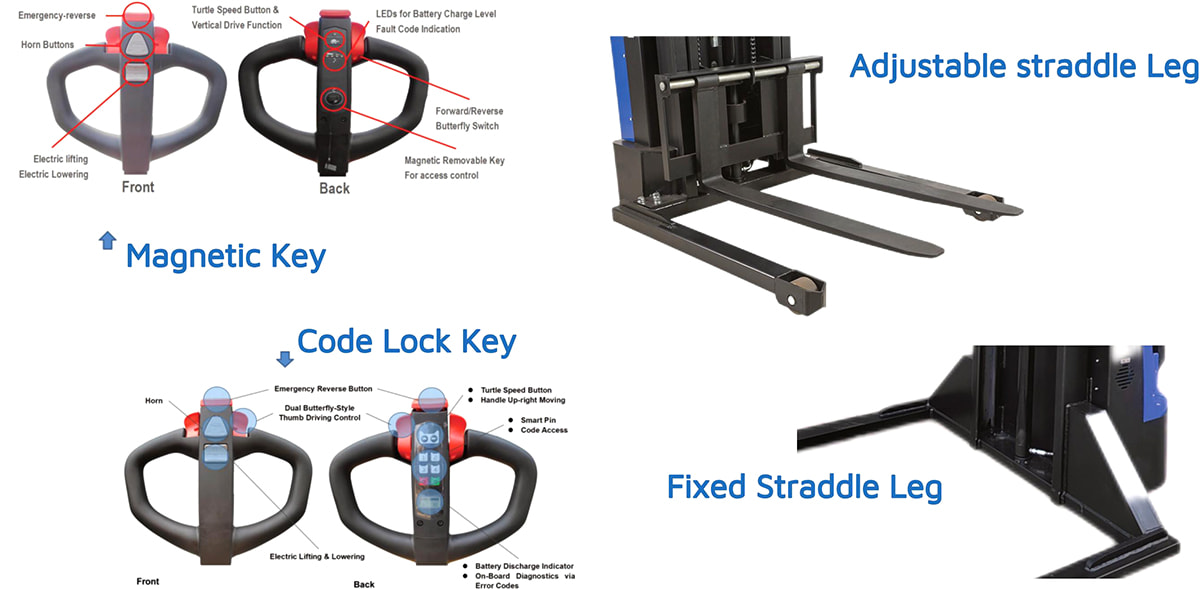

Canbus Multifunction Intelligent handle Option

Turtle speed / Upright working / Battery indicator/ Error code indicator / Maintenance Friendly

Model			QES15E-SL
Distinguishing Mark
1.1	Drive		Electric
1.2	Operator type		Pedestrian
1.3	Load capacity/ Rated load	Q(t)	1.5
1.4	Load centre distance	C(mm)	600
1.5	Load distance, centre of drive axle to fork	X(mm)	876.5
1.6	Wheelbase	Y(mm)	1235
Weight
2.1	Service weight (Without battery)	kg	450	470	480	490	500	510
2.2	Battery weight	kg	Sealed lead acid battery 40kg
			Lithium battery 20kg
2.3	Axle loading, laden front/rear	kg	-
2.4	Axle loading, unladen front/rear	kg	-
Tyres, Chassis
3.1	Tires		PU
3.2	Tires size. Front	(pxy(mm)	80*80
3.3	Tires size. Rear	(pxy(mm)	210*70
3.4	Balance wheels(Dimensions)	(pxy(mm)	120*50
3.5	Wheels, number front/rear		2/1
3.6	Tread, front	mm	400
3.7	Tread, rear	mm	540

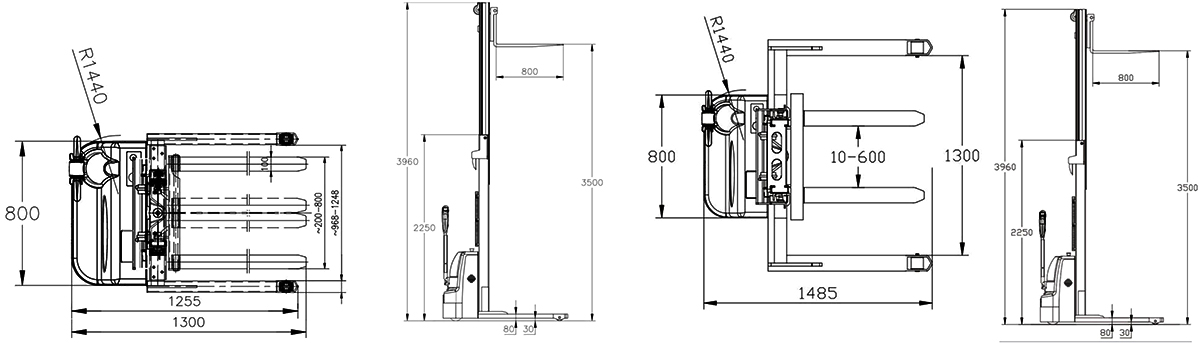

Dimensions
4.1	Lowered mast height	mm	1980	1560	1780	2030	2210	2250
4.2	Free lift height	mm	0
4.3	Lift Height	mm	1600	2000	2500	3000	3300	3500
4.4	Extended mast height	mm	1980	2460	3000	3460	3760	3960
4.5	Height of tiller in drive position min./max.	mm	880-1320
4.6	Height, lowered	mm	70
4.7	Overall length	mm	1748
4.8	Length to face of forks	mm	1125
4.9	Overall width	mm	800
4.10	Width of leg	mm	100
4.11	Length of leg	mm	1070
4.12	Fork dimensions	mm	55/160/1125
4.13	Distance between fork-arms	mm	240
4.14	Ground Clearance, centre of wheelbase	mm	35
4.15	Aisle width for pallets 1000x1200 crossways	mm	2305
4.16	Aisle width for pallets 800x1200 lengthways	mm	2230
4.17	Turnign radius	mm	1440
Performance data
5.1	Travel speed, laden/unladen	km/h	3.5/4.0
5.2	Lift speed, laden/unladen	m/s	81/130
5.3	Lowering speed, laden/unladen	m/s	130/80
5.4	Max. Gradeability, laden/unladen	%	3-7
5.5	Service brake		Electromagnetic
Electric motor
6.1	Drive motor rating	KW	2.2
6.2	Lift motor rating	KW	0.75
6.3	Battery voltage, nominal capacity	V/AH	Lead-acid 2*12v/75AH (100Ah as option)
			Lithium battery 24V50AH (100ah as option)
6.4	Battery size L X W X H	mm	Lea-acid battery (262/330x172x169/210)x2
			Lithium battery 33090480
6.5	Type of control		DC-Speedcontrol
6.6	Sound level at driver's ear acc. to EN12053	dB(A)	65
