Standard Electric Pallet Truck

Standard Electric Pallet Truck

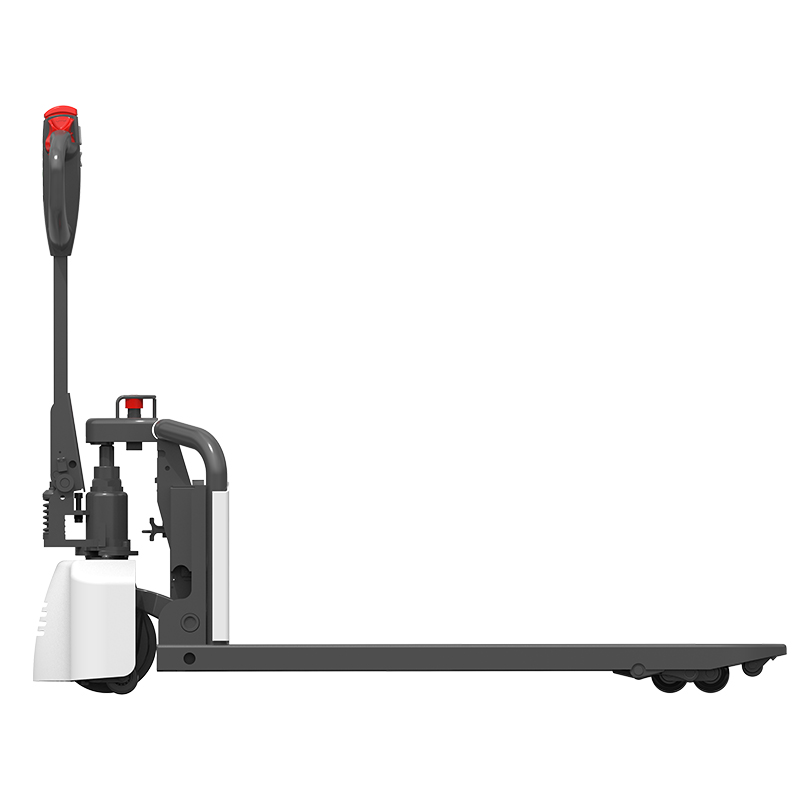

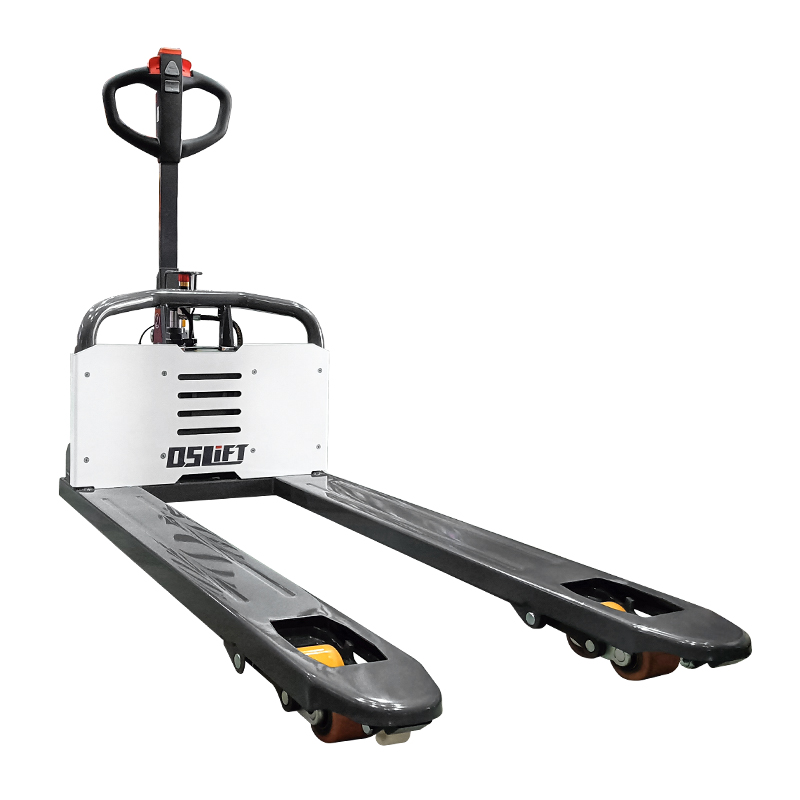

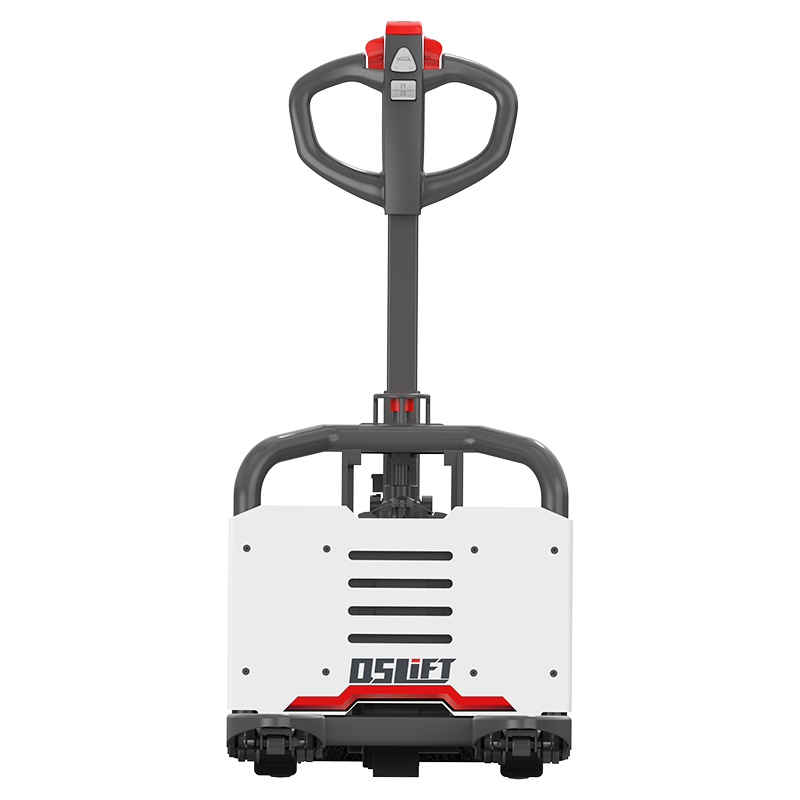

EPT15
Get a Quote
ept15
ept15-2
ept15-7
ept15-3
ept15-4
ept15-5
ept15-6
dm6a9654
dm6a9653
dm6a9647
dm6a9649
dm6a9650
dm6a9652
  • Description

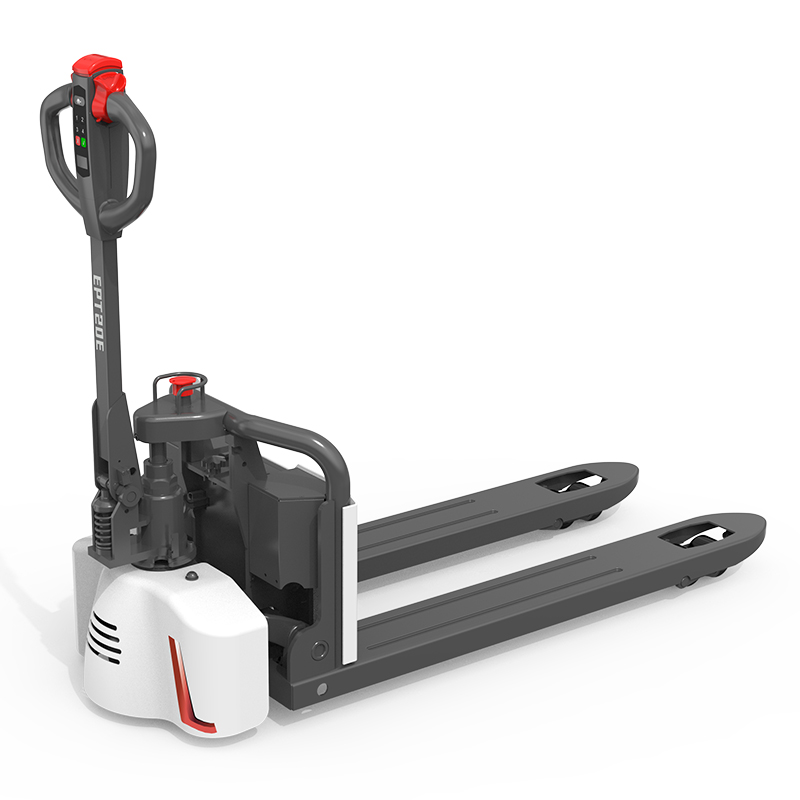

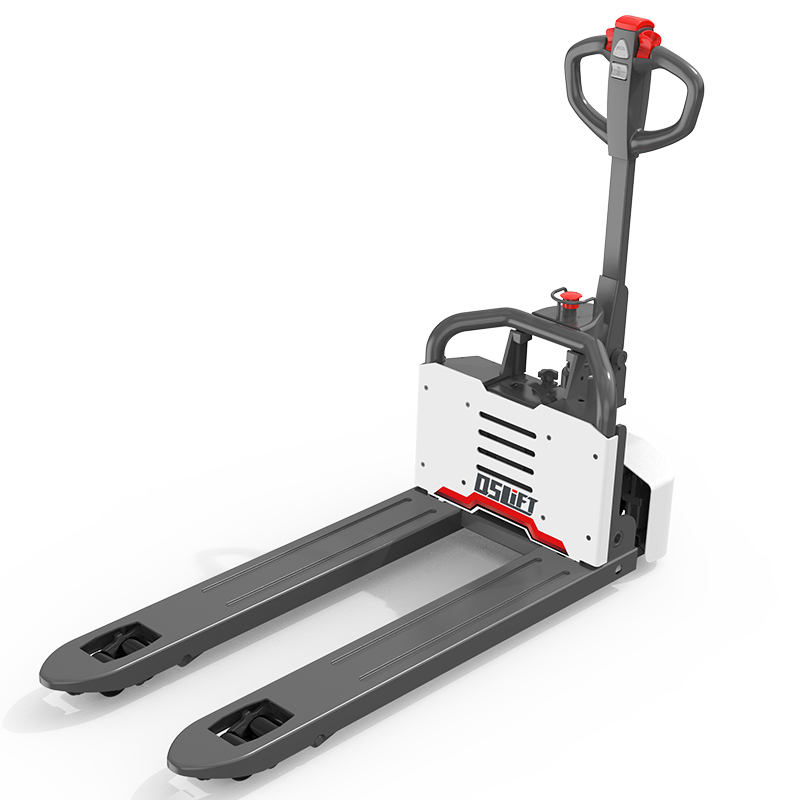

  • EPT15 pallet trucks is Perfect for Light-duty applications. Compact & Skeleton design. Fast-Charging Lithium batter. Ideal for occasional operations. Easy-battery replacement. High maneuverability.


    Capacity: 1500kg

    Small working size

    Low self-weight: 160kg

    Smart design



    Lithium battery

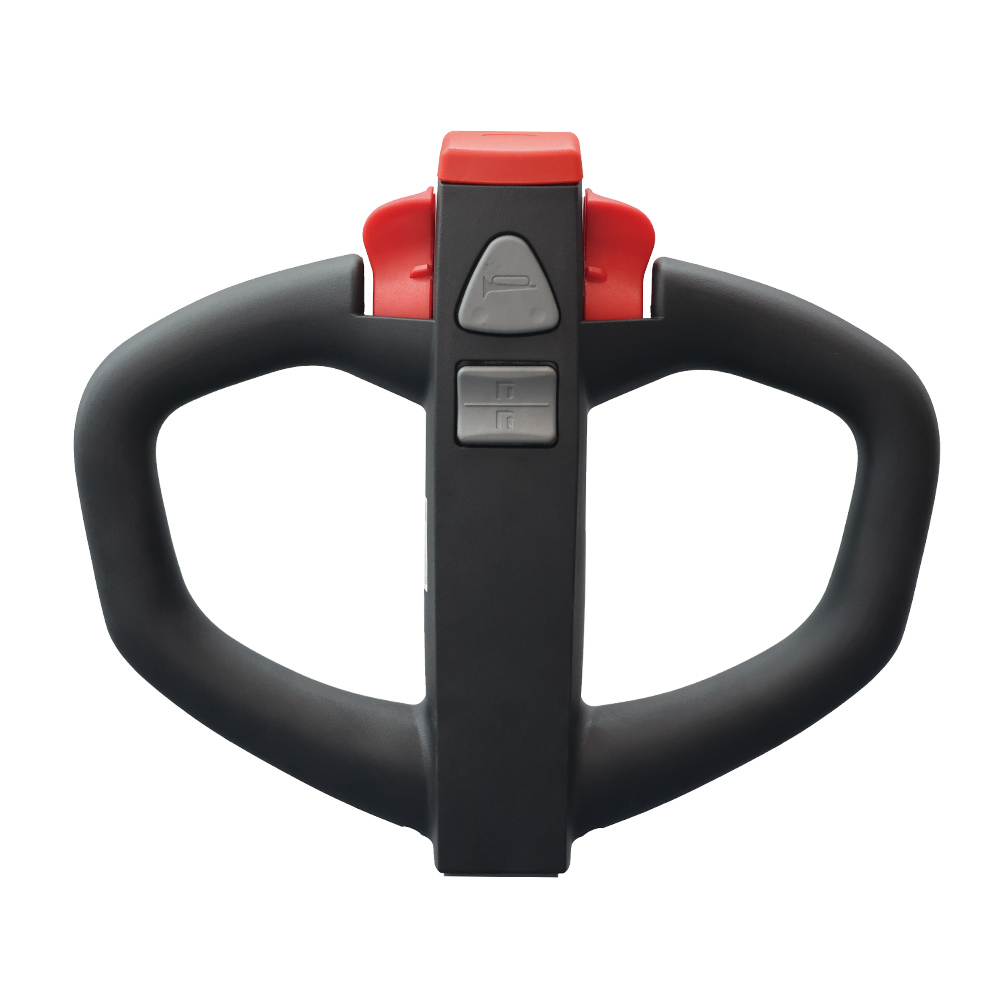

    Canbus handle

    CE conformed

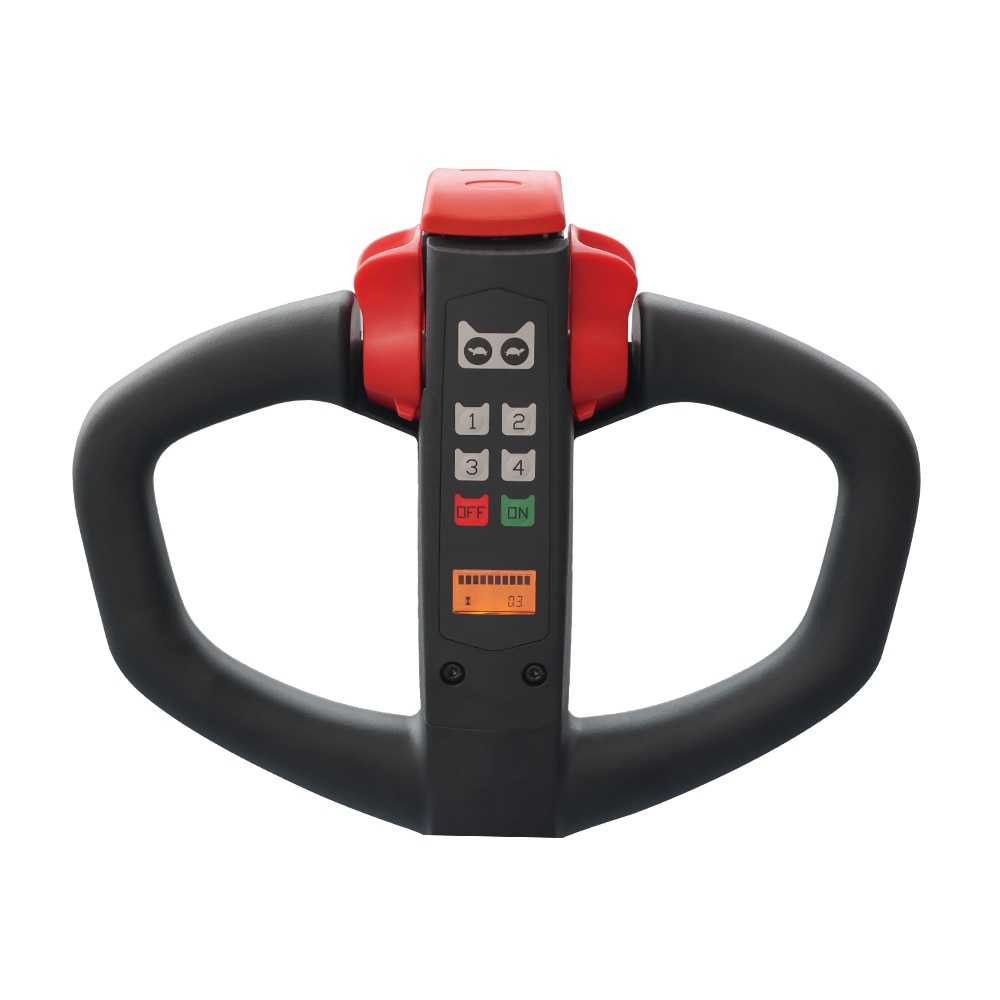

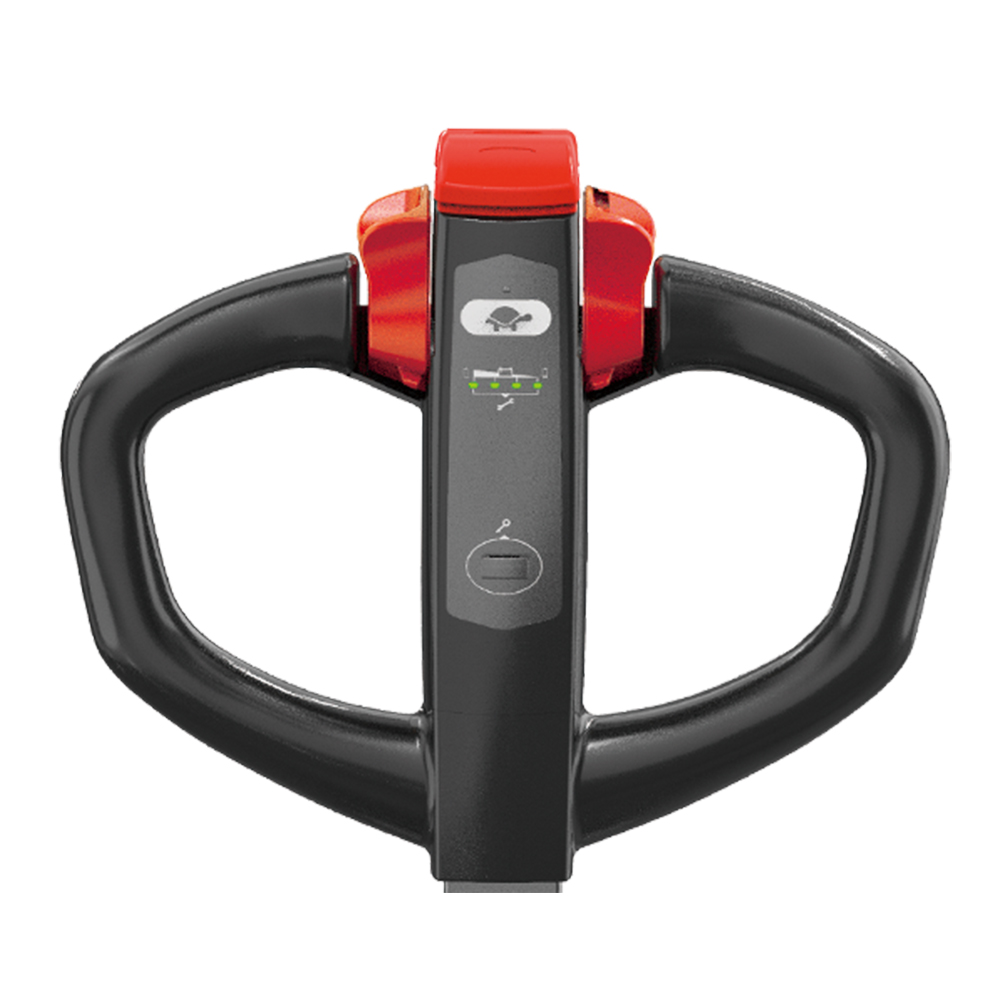

    Operator System:

    Canbus handle

    Turtle speed button

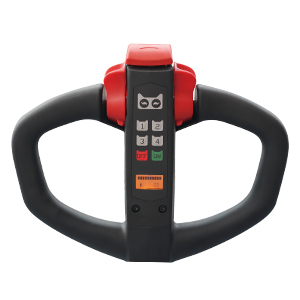

    Smart Pin code

    Access, Battery

    discharge  indicator

    On-board diagnostics

    via error codes

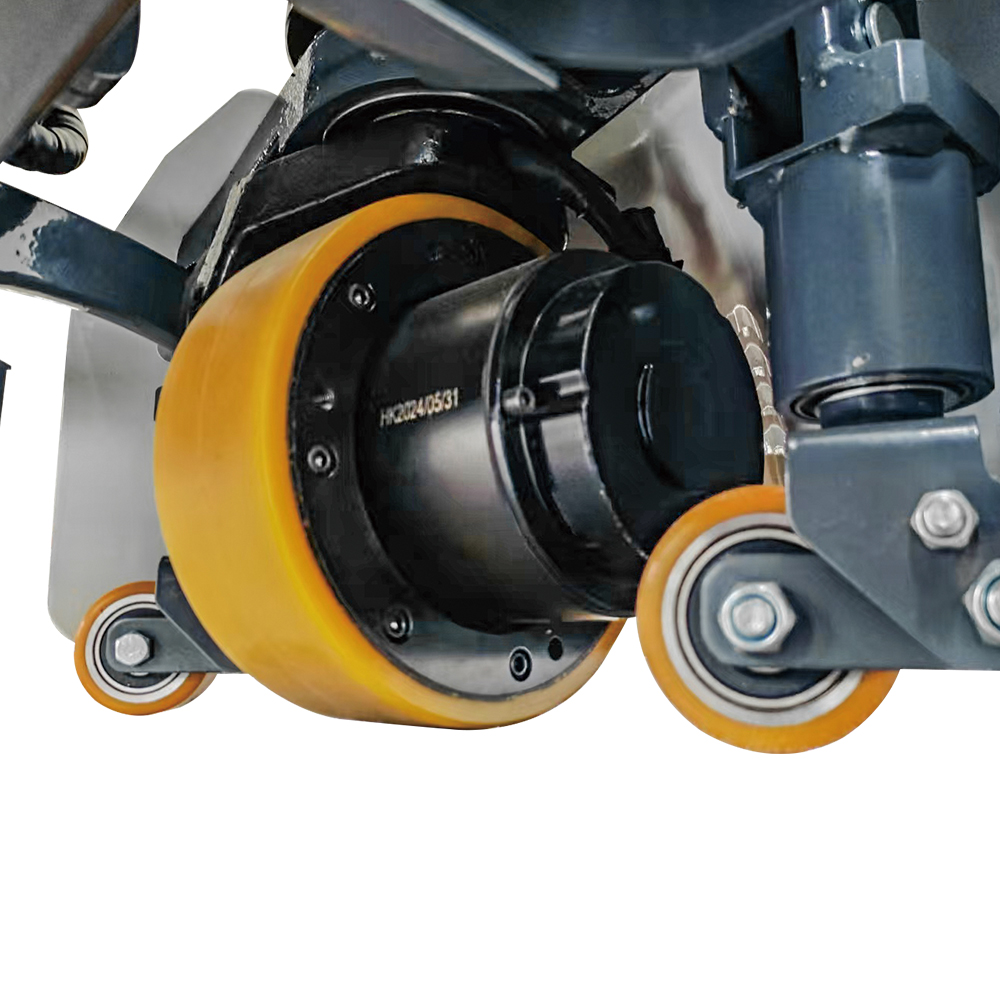

    Drive System:

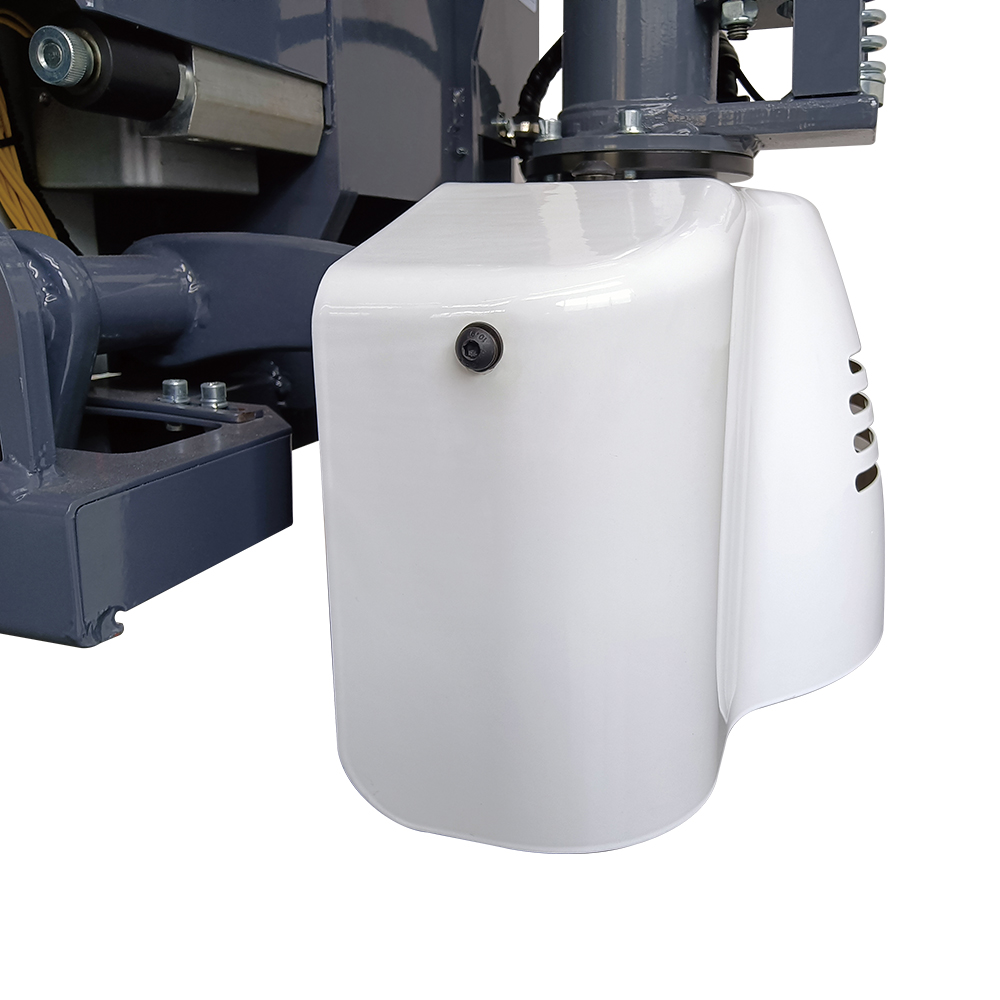

    Full enclosed drive wheel cover-

    Rigid and robust fully enclosed drive wheel cover gives all-round foot protection for operator

    maintenance free, big transmission ratio  gearbox, high gradebility, low energy consumption


    Emergency Switch：

    located where you can easily reach and control, assuring safety for people and truck

    Controller Kits：

    Curtis controller

    Bucher pump station

    With more stable quality

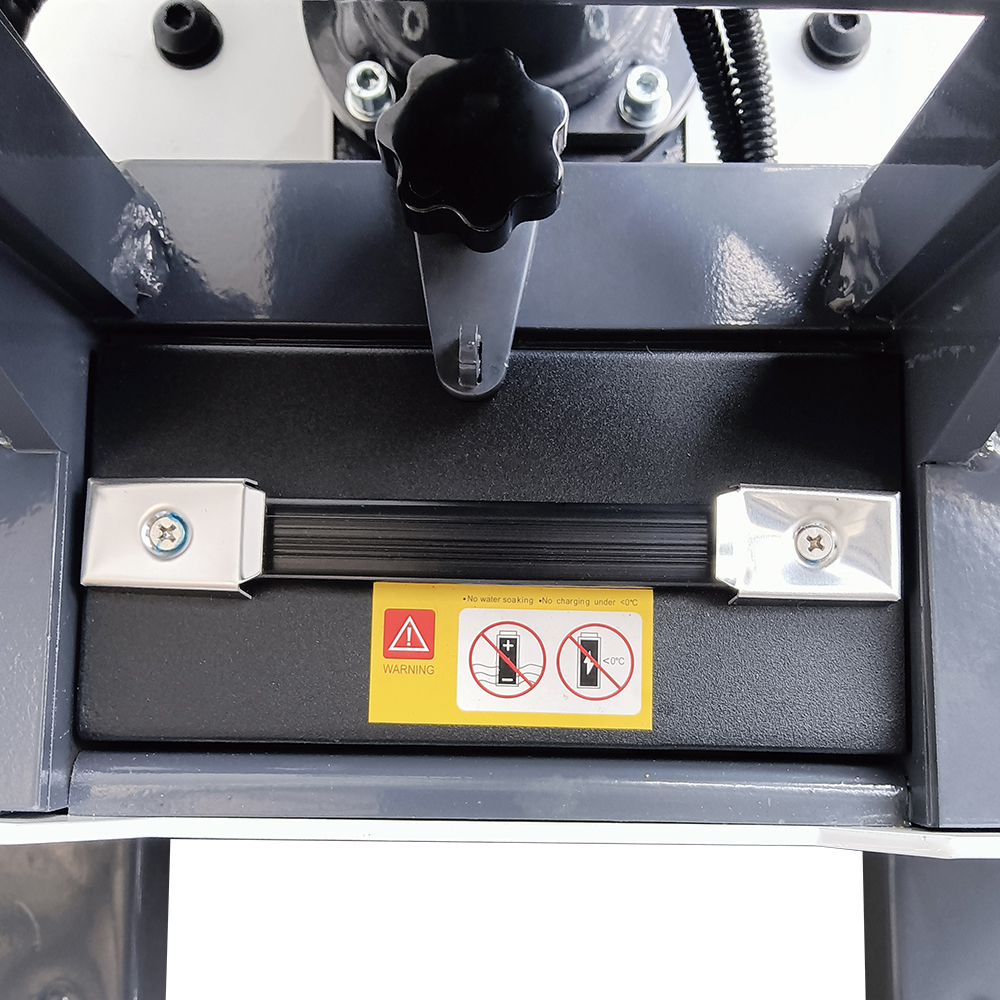

    Lithium Iron Phosphate Battery：

    24v/25AH Lithium battery

    easy replacement, low energy comsumption, long working time, safer and stable cell with long service life

    Item / Type

    		 EPT15

    Drive



    Electric

    Operator Type



    Pedestrian

    Capacity

    kg

    1500

    Load Centre

    mm

    600

    N.W. (Inc. Li-battery)

    kg

    160

    Size of Drive wheel

    mm

    Φ210×70

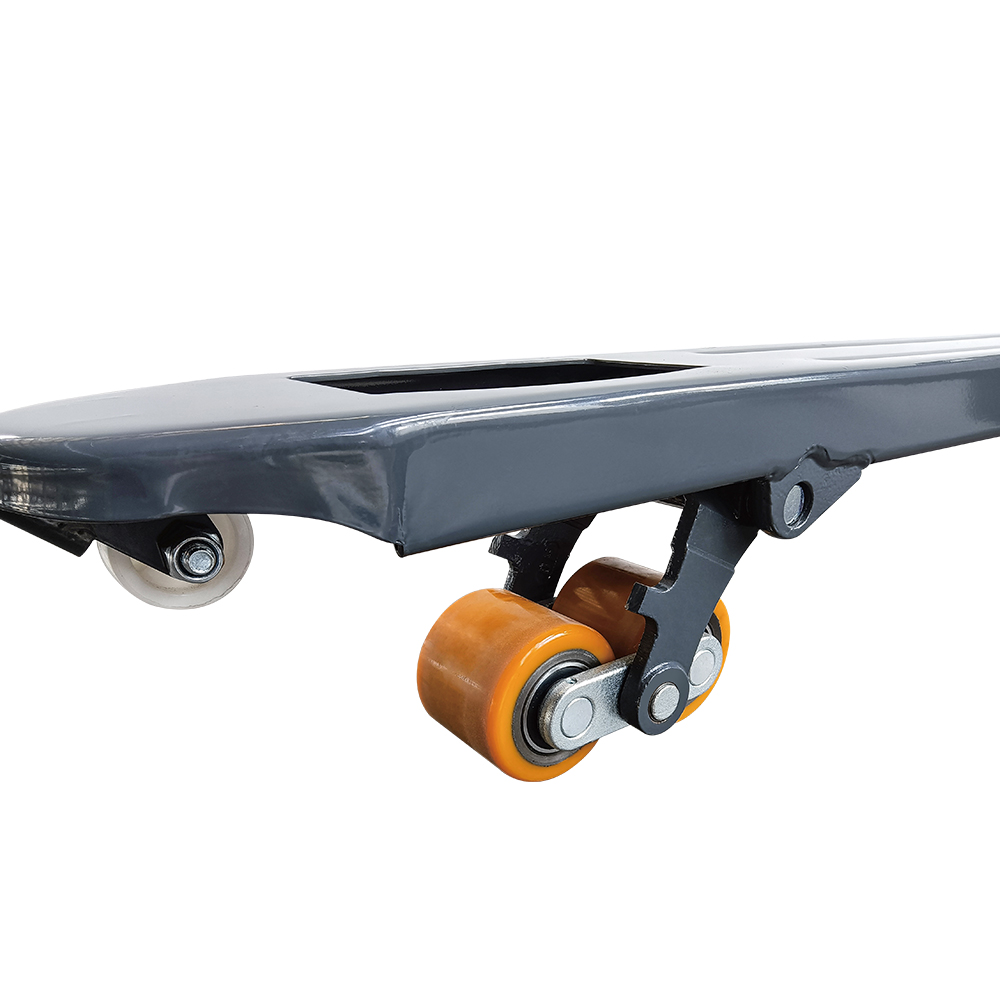

    Size of load roller

    mm

    Φ380×70

    Material of the wheel



    PU

    Size of the truck

    mm

    1540×560/680

    Hight from Ground to the top of Handle

    mm

    1250

    Height of truck

    mm

    560

    Height of the fork

    mm

    85-190

    Size of the fork

    mm

    560/680×1150

    Width of the fork

    mm

    160

    Turning Radius(mm)

    mm

    1350

    Distance of centre from Steering wheel to load roller

    mm

    1220

    Speed with/without loading

    km/h

    4.5

    Gradeability (go through % ramp/obstaele)

    %

    5-7

    Power of drive motor

    kw

    0.75

    Power of lifting motor

    kw

    Bucher 0.5

    Controller



    Curtis

    Handle



    CAN BUS handle with password lock Canbus

    Battery

    WAh

    24V/25ah Lithium- Battery

    Charger

    WA

    24V/4A
    *Battery Option： 24V/30AH
    Walking Electric pallet truck 1kg=2.2lb 1inch=25.4mm
PREV：Electric Pedestrian Power pallet truckNEXT：Economic Electric Pallet Truck

Related Products

Changxing Qiangsheng Machinery Co., Ltd. has grown into a professional machinery and equipment manufacturing enterprise integrating production, sales, and service.

As China Custom Standard Electric Pallet Truck Suppliers and Standard Electric Pallet Truck Factory. Since the establishment of the company, the factory has determined the pre-development policy of "seeking momentum first, profit later; based on quality and creating market". And put forward "scientific management, careful processing, providing better products" as the work policy. From the chairman, and general manager to each employee, we have established a sense of responsibility for quality priority and hard work, which is the spiritual pillar of career development and is brought into practical work.

CERTIFICATION

What types of batteries are commonly used in standard electric pallet truck, and how do they affect the equipment's performance and maintenance requirements?
Standard electric pallet truck typically use one of the following types of batteries, each of which can affect the equipment's performance and maintenance requirements differently:
Lead-Acid Batteries (Flooded or Sealed):
Performance: Lead-acid batteries are commonly used in electric pallet trucks. They provide a reliable power source and can deliver consistent performance. However, their energy density is lower compared to newer battery technologies, which means they may require larger and heavier battery packs for the same amount of energy.
Maintenance: Lead-acid batteries require regular maintenance, including checking and topping off electrolyte levels (for flooded types), equalizing charges, and proper ventilation. Failure to maintain lead-acid batteries can result in reduced lifespan and performance.
Lithium-Ion Batteries:
Performance: Lithium-ion batteries offer higher energy density, which means they can provide longer runtimes with a smaller and lighter battery pack. They also have a longer cycle life and can be partially charged without affecting the battery's health.
Maintenance: Lithium-ion batteries generally require less maintenance than lead-acid batteries. They don't need electrolyte checks, and their maintenance is mostly limited to regular charging and monitoring for any signs of overheating or other issues.
Nickel-Metal Hydride (NiMH) Batteries:
Performance: NiMH batteries are known for their moderate energy density, making them a middle ground between lead-acid and lithium-ion batteries. They offer decent runtimes and cycle life.
Maintenance: NiMH batteries are relatively low maintenance compared to lead-acid batteries, as they don't require electrolyte checks.
Maintenance primarily involves regular charging and monitoring for any signs of deterioration.
The choice of battery type can significantly impact the performance and maintenance requirements of standard electric pallet trucks:
Performance: Lithium-ion batteries tend to provide the best performance, offering longer runtimes, faster charging, and the ability to handle partial charging without affecting the battery's health. Lead-acid batteries can be dependable but may require larger battery packs and longer charging times. NiMH batteries are a compromise between these two options.
Maintenance: Lead-acid batteries require the most maintenance, which can be labor-intensive and time-consuming. Lithium-ion batteries are the easiest to maintain, with minimal upkeep. NiMH batteries fall in between, requiring some maintenance but less than lead-acid batteries.
The choice of battery type should be based on the specific needs and priorities of the application, including factors like cost, performance, maintenance, and available infrastructure for charging and maintenance. It's essential to follow the manufacturer's guidelines for the specific battery type used to ensure proper care and maintenance.
