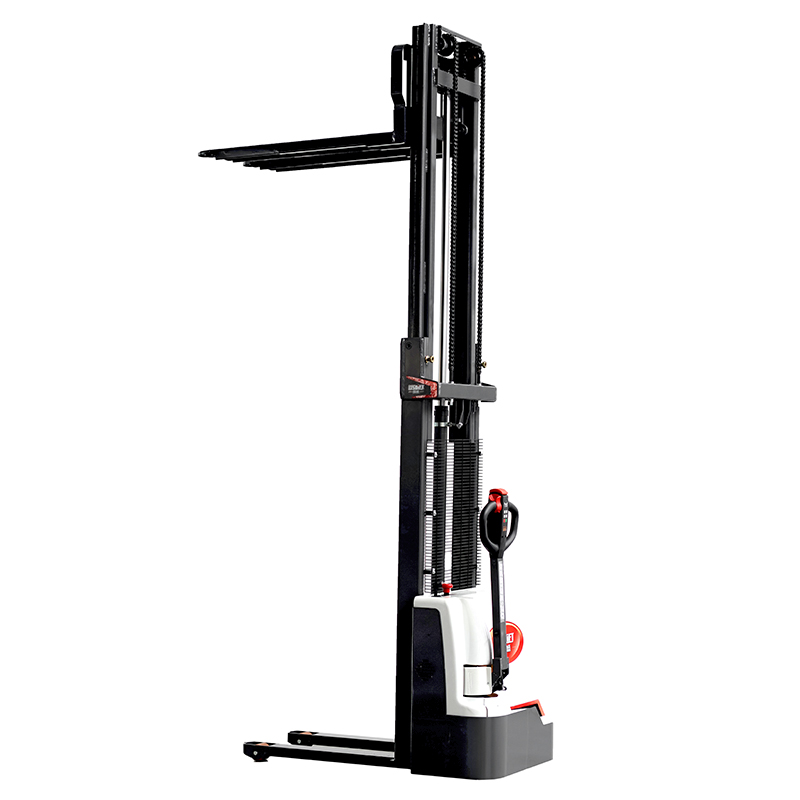

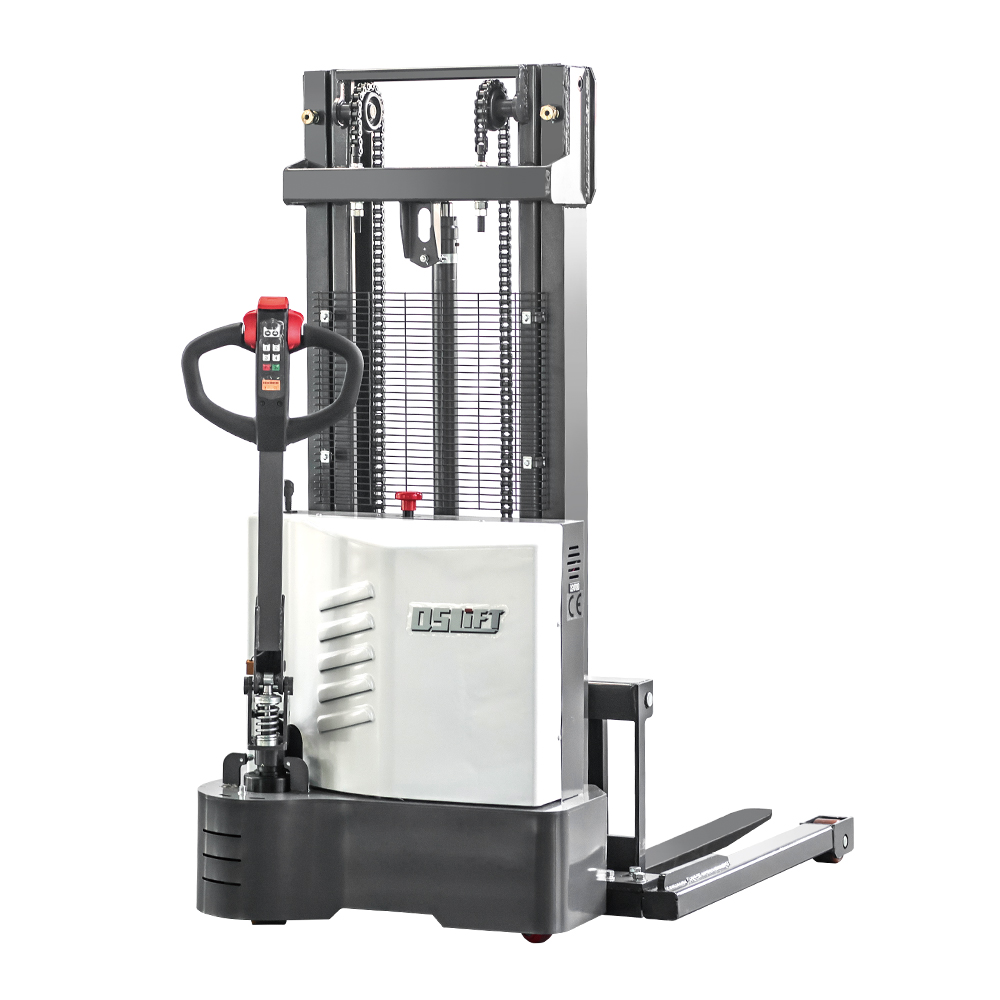

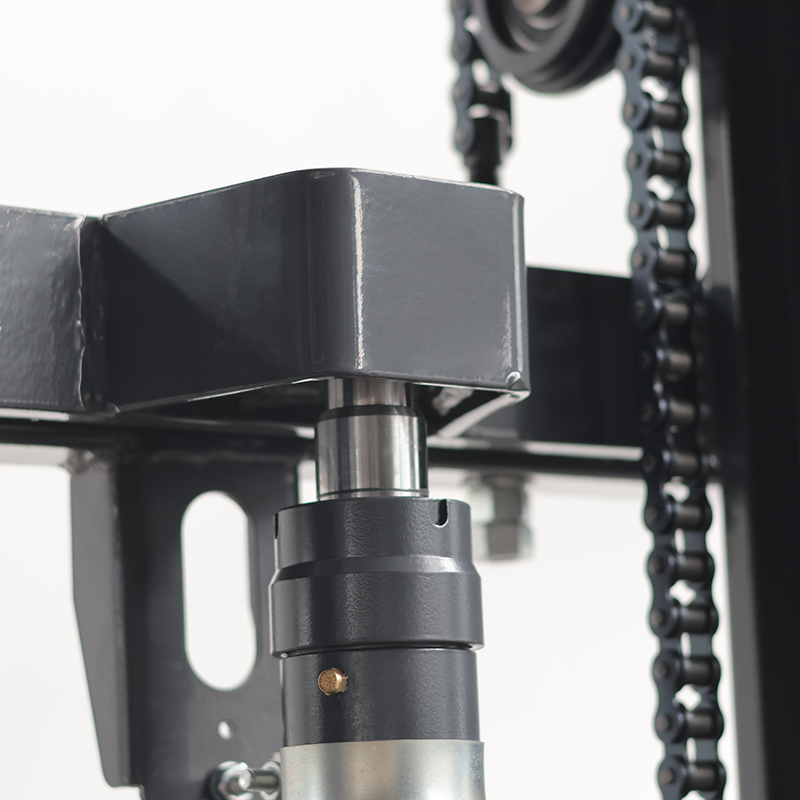

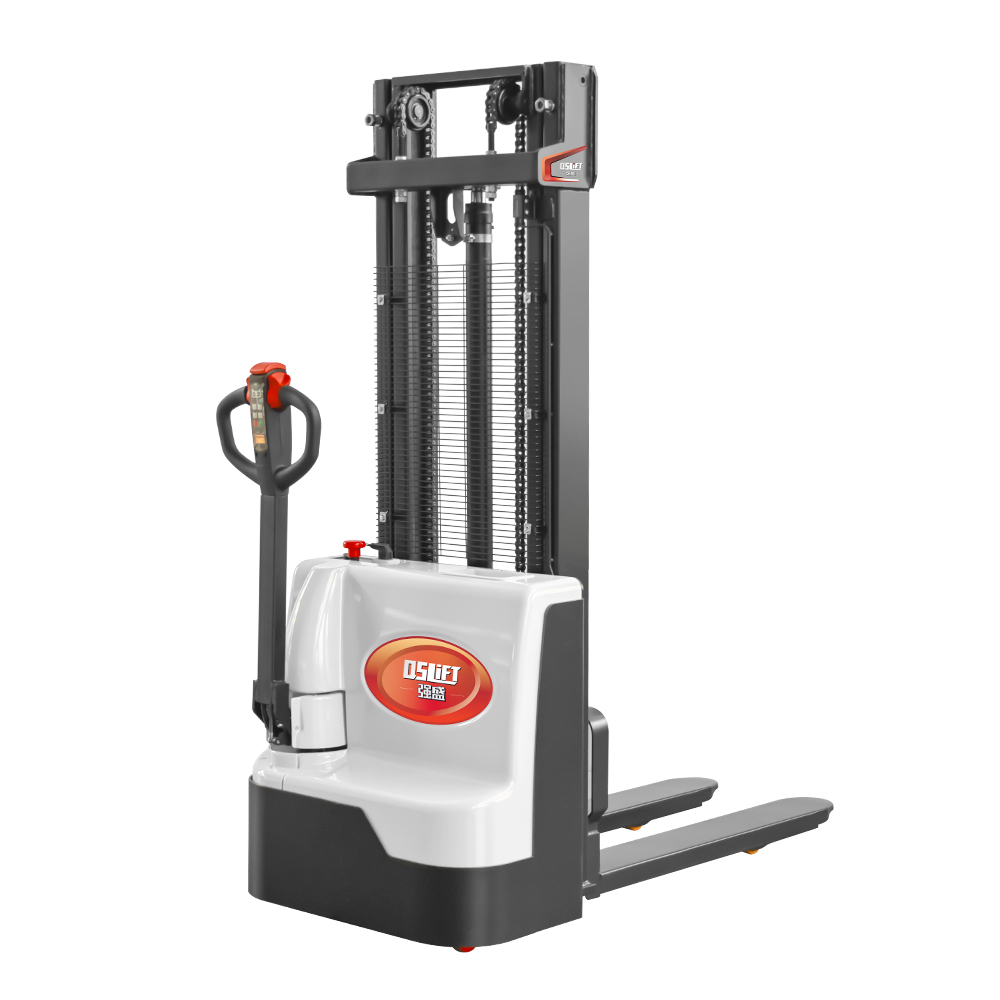

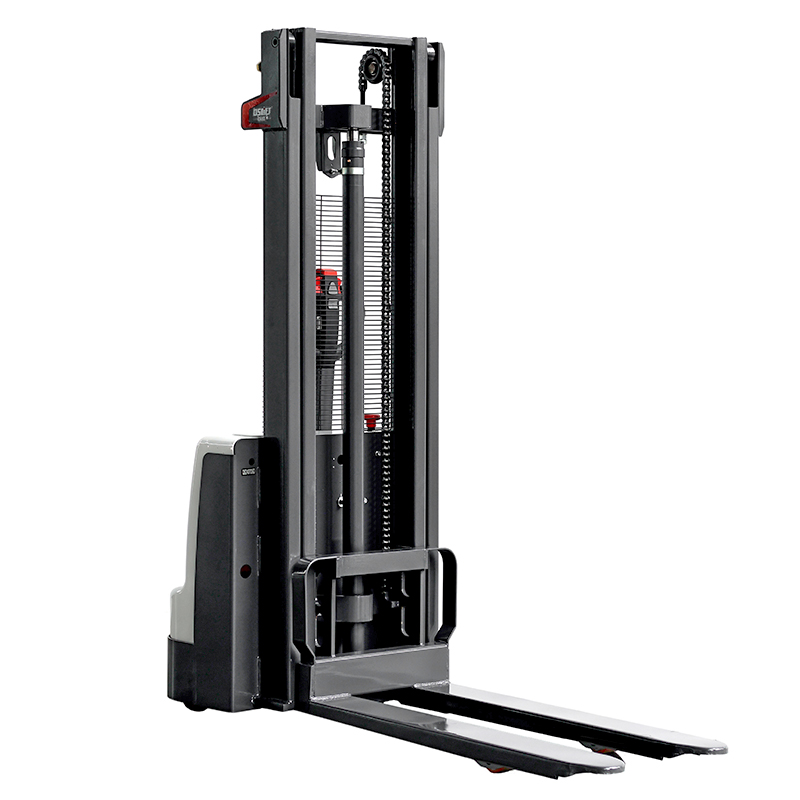

The QES Series is an economical long -tiller pallet stacker, with the rated load capacity of 1000kg and 1500kg, lifting height from 1600mm to 3500mm, it meets customers' demands for increasing economic performance, handling efficiency and safety.
High maneuverable, economical and practical design, it can fully meets customers' demands.
With compact design it's turning radius is smaller than conventional stackers, which is more suitable for small stacking warehouse operation.

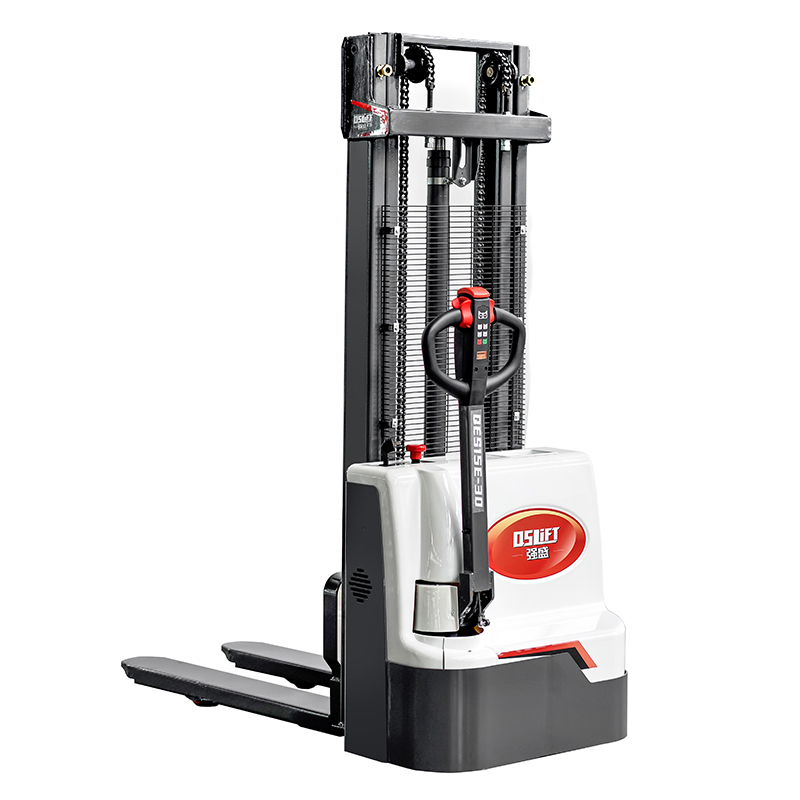

Long-tiller design meets the requirements of ergonomics and safety Long tiller stacker uses less operating force, compared with the short tiller stacker.
Long tiller design ensure the operators high efficiency and safe distance from stacker -body.
Height is adjustable according to operators operating habits and height preference.
4-wheel design with side ways long-tiller gives operators a better view to the pallet.
The safety distance and good view makes stacking operation more efficient and faster.

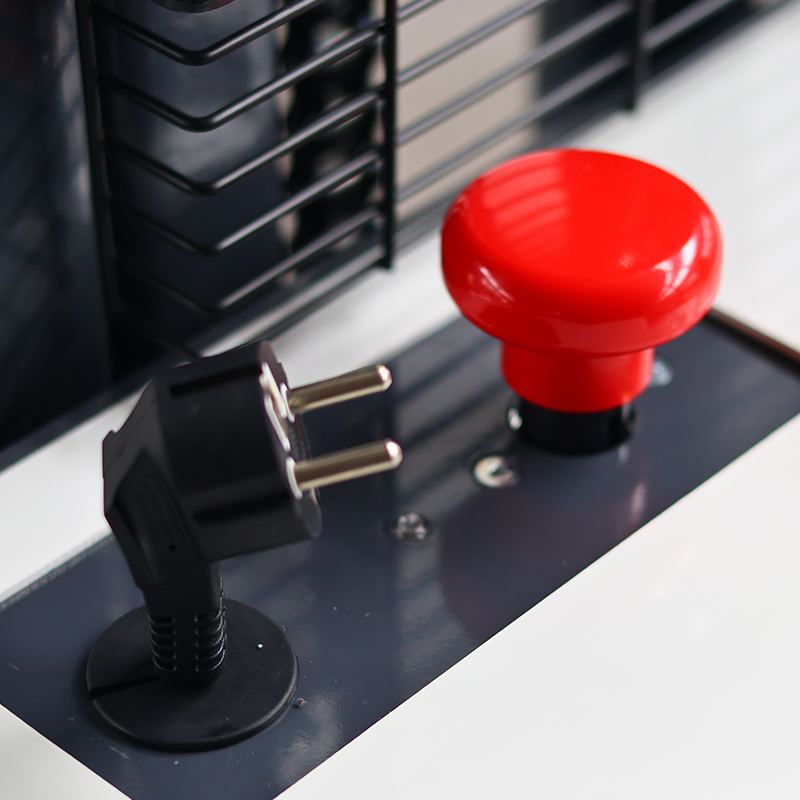

Emergency button
Emergency switcch located where you can easily reach and control, assuring safety for people and truck
Code lock handle for option
Operator system
Canbus handle
Turtle speed button Smart Pin code
Access, Battery discharge indicator
On-board diagnostics via error codes
| Technical data sheet for industrial trucks | ||||||||||||||
| Model | QES1516E | QES1520E | QES1525E | QES1530E | QES1533E | QES1535E | QES1516E-SL | QES1520E-SL | QES1525E-SL | QES1530E-SL | QES1533E-SL | QES1535E-SL | ||
| Distinguishing Mark | ||||||||||||||
| 1.1 | Drive | Electric | Battery | Battery | Battery | Battery | Battery | Battery | ||||||
| 1.2 | Operator type | Pedestrian | Pedestrian | Pedestrian | Pedestrian | Pedestrian | Pedestrian | Pedestrian | ||||||
| 1.3 | Load capacity/ Rated load | Q(t) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |||||
| 1.4 | Load centre distance | C(mm) | 600 | 600 | 600 | 600 | 600 | 600 | 600 | |||||
| 1.5 | Load distance, centre of drive axle to fork | X(mm) | 876 | |||||||||||
| 1.6 | Wheelbase | Y(mm) | 1235 | |||||||||||
| Weight | ||||||||||||||
| 2.1 | Service weight（Without battery） | kg | 380 | 410 | 420 | 450 | 475 | 485 | ||||||
| 2.2 | Battery weight | kg | Lead acid battery 40kg | |||||||||||
| kg | Lithium battery 20kg | |||||||||||||
| 2.3 | Axle loading, laden front/rear | kg | ~ | ~ | ~ | ~ | ~ | ~ | ||||||
| 2.4 | Axle loading, unladen front/rear | kg | ~ | ~ | ~ | ~ | ~ | ~ | ||||||
| Tyres, Chassis | ||||||||||||||
| 3.1 | Tires | PU | ||||||||||||
| 3.2 | Tires size, Front | φxy(mm) | 80*70 | |||||||||||
| 3.3 | Tires size, Rear | φxy(mm) | 210*70 | |||||||||||
| 3.4 | Balance wheels(Dimensions) | φxy(mm) | 150*50 | |||||||||||
| 3.5 | Wheels, number front/rear | 2/1 | ||||||||||||
| 3.6 | Tread, front | mm | 400 | |||||||||||
| 3.7 | Tread,rear | mm | 540 | |||||||||||
| Dimensions | ||||||||||||||
| 4.1 | Lowered mast height | mm | 1980 | 1560 | 1810 | 2060 | 2210 | 2250 | ||||||
| 4.2 | Free lift height | mm | ~ | ~ | ~ | ~ | ~ | ~ | ||||||
| 4.3 | Lift Height | mm | 1600 | 2000 | 2500 | 3000 | 3300 | 3500 | ||||||
| 4.4 | Extended mast height | mm | 1980 | 2460 | 2960 | 3460 | 3760 | 3960 | ||||||
| 4.5 | Height of tiller in drive position min./max. | mm | 880-1320 | |||||||||||
| 4.6 | Height, lowered | mm | 90 | |||||||||||
| 4.7 | Overall length | mm | 1748 | |||||||||||
| 4.8 | Length to face of forks | mm | 1125 | |||||||||||
| 4.9 | Overall width | mm | 800 | |||||||||||
| 4.10 | Outer width of leg | mm | 500/620 | |||||||||||
| 4.11 | Inner width of leg | mm | 300/420 | |||||||||||
| 4.12 | Length of leg | mm | 1067 | |||||||||||
| 4.13 | Fork dimensions | mm | 55/160/1125 | |||||||||||
| 4.14 | Outer width of fork | mm | 560/680/330-680 | |||||||||||
| 4.15 | Distance between fork-arms | mm | 240 | |||||||||||
| 4.16 | Ground Clearance, centre of wheelbase | mm | 35 | |||||||||||
| 4.17 | Aisle width for pallets 1000x1200 crossways | mm | 2305 | |||||||||||
| 4.18 | Aisle width for pallets 800x1200 lengthways | mm | 2230 | |||||||||||
| 4.19 | Turnign radius | mm | 1440 | |||||||||||
| Performance data | ||||||||||||||
| 5.1 | Travel speed, laden/unladen | km/h | 3.5/4.0 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | |||||
| 5.2 | Lift speed, laden/unladen | m/s | 81/130 | 70-115 | 70-115 | 70-115 | 70-115 | 70-115 | 70-115 | |||||
| 5.3 | Lowering speed, laden/unladen | m/s | 130/80 | 69-75 | 69-75 | 69-75 | 69-75 | 69-75 | 69-75 | |||||
| 5.4 | Max. Gradeability, laden/unladen | % | 3-7 | 3-7 | 3-7 | 3-7 | 3-7 | 3-7 | 3-7 | |||||
| 5.5 | Service brake | Electromagnetic | Electromagnetic | |||||||||||
| Electric motor | ||||||||||||||
| 6.1 | Drive motor rating | KW | 2.2 | |||||||||||
| 6.2 | Lift motor rating | KW | 0.75 | |||||||||||
| 6.3 | Battery voltage, nominal capacity | V/AH | Lead-acid 2*12v/75AH (100Ah as option） | |||||||||||
| Lithium battery 24V50AH （100ah as option） | ||||||||||||||
| 6.4 | Battery size L X W X H | mm | Lea-acid battery (262/330×172×169/210)×2 | |||||||||||
| Lithium battery 330*90*480 | ||||||||||||||
| 6.5 | Type of control | DC- Speed control | ||||||||||||
| 6.6 | Sound level at driver's ear acc. to EN12053 | dB(A) | 65 | |||||||||||
