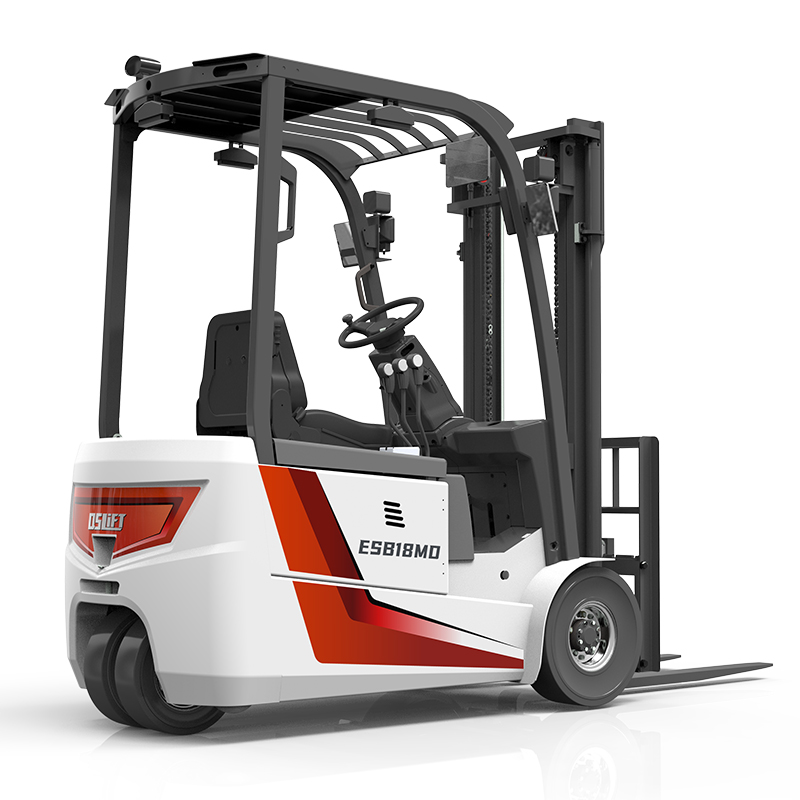

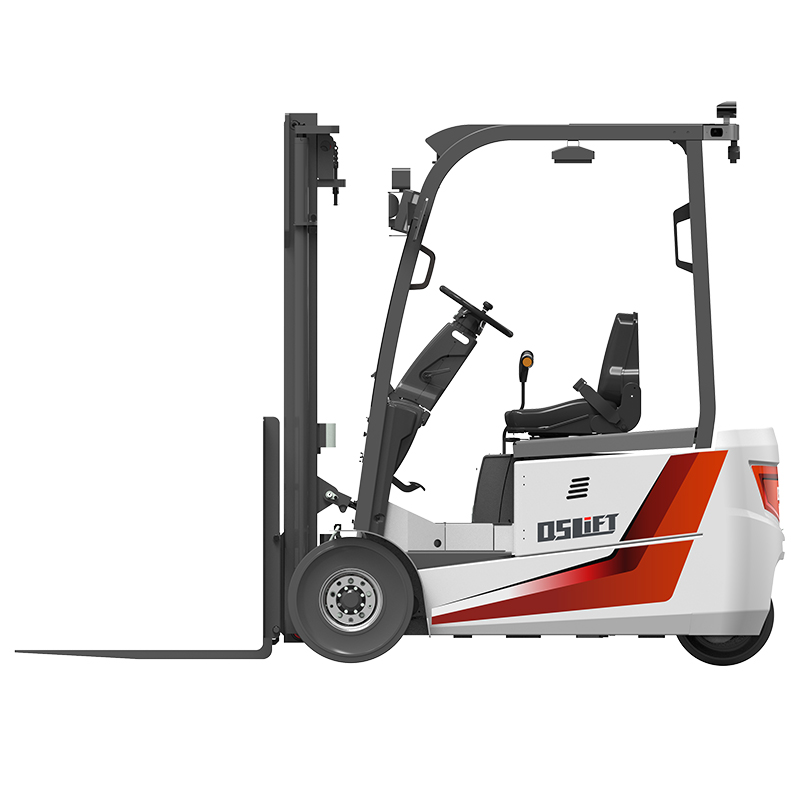

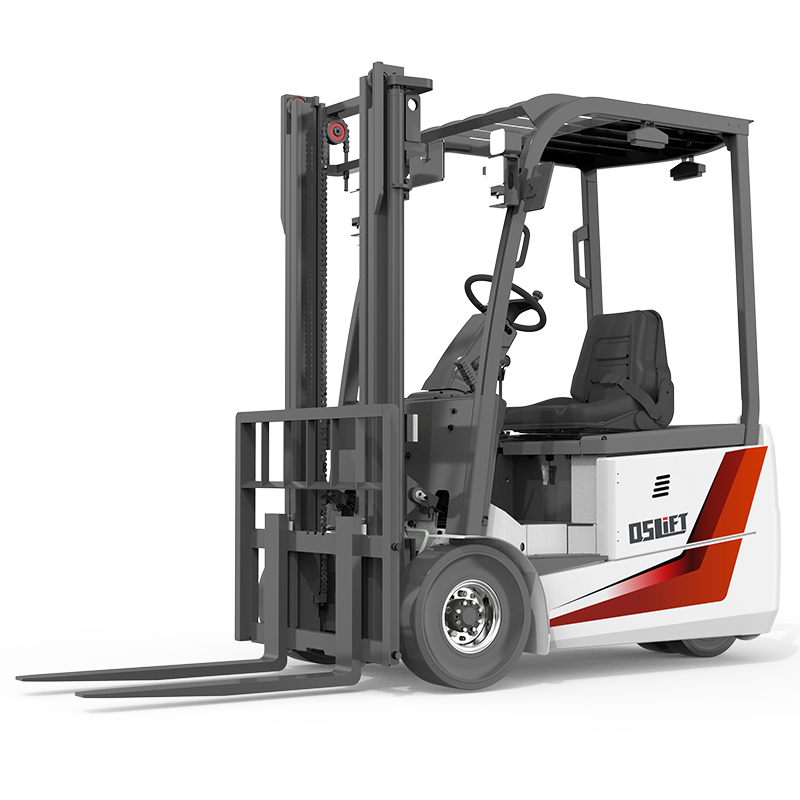

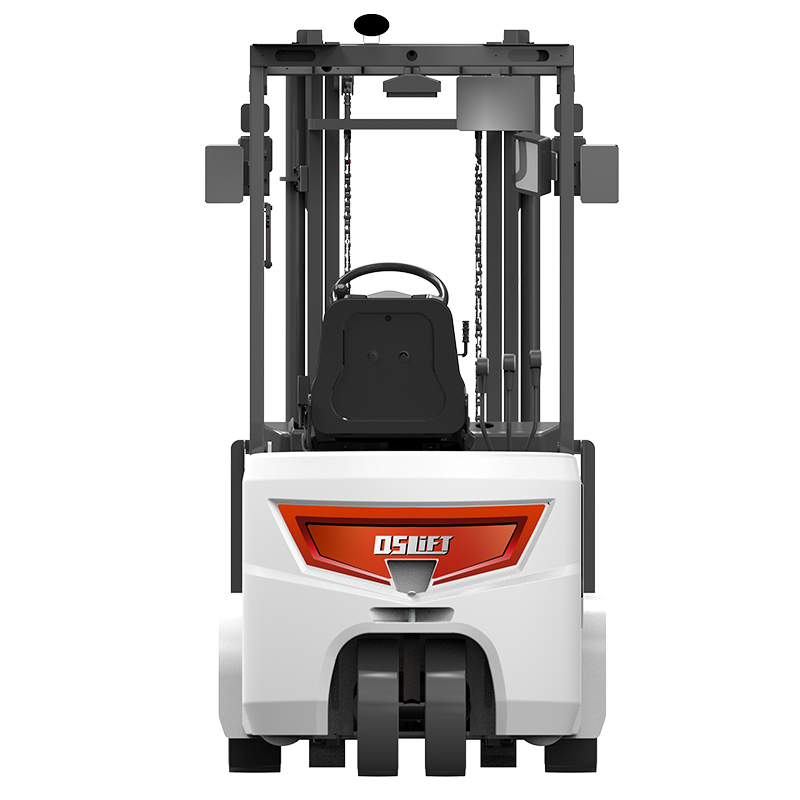

Custom Stable lead acid electric forklift Suppliers, Factory

Battery is placed at the rear of the truck. The battery can beremoved from the rear enables the battery to be replaced more flexibly(Only for the lead-acid battery).

Standard Specificatian

●Duplex mast

●Silent gear pump

●Multi-function color-screen instrument

●LED headlight

●Integral rubber pedal pad

●Dual multi-way valve

●Stamping front pedal

●Integral ABS boarding pedal

●Integral stamped side panel and hood

●Soft landing

●Speed mode selection

●DC-DC converter

●Emergency power off switch

●Reverse buzzer

●Load sensing steering system

●Traction pin

●Rearview mirror

Option

●Large-capacity battery

●Charger

●Rear work light

●Front dual tire

●Built-in sideshifter

●OPS system

●Front windshield

●Cab

●Widening or heightening load backrest

●Forks of other lengths

●Triple multi-way valve

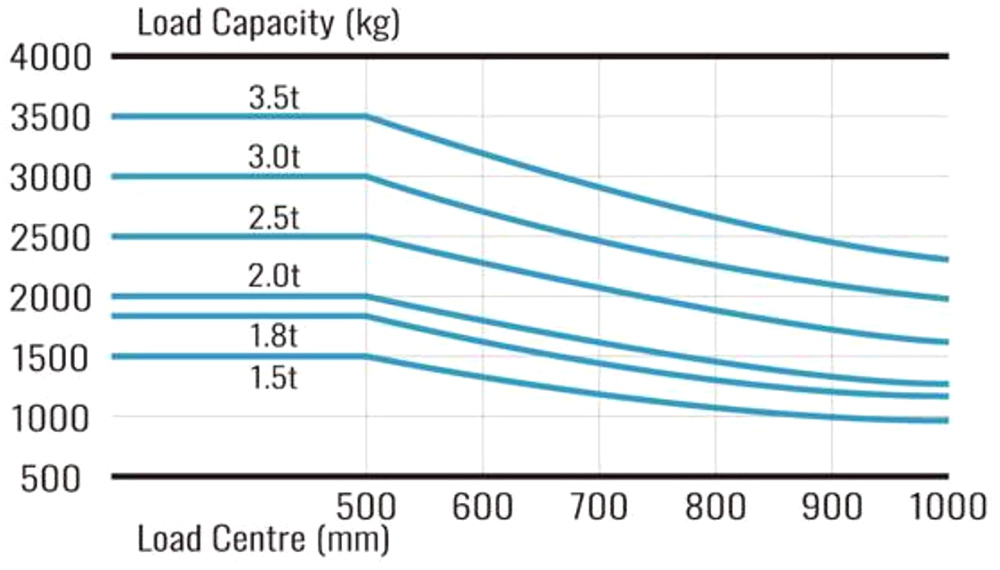

Load Graph

Battery Specification

Lithium Battery Specification
Capacity	1.5-mini2t(X)	2.0-2.5t	3.0-3.5t
(Ah/5h)	80V	80V	80V
120 (Lithium)	●	-	-
202 (Lithium)	●	●	-
271 (Lithium)	●	●	●
404 (Lithium)	-	●	●
542 (Lithium)	一	-	●

●Std.●Opt-Null

Lead-acid Battery Specification
Capacity (Ah/5h)	1.5-mini2t(X) 80V	1.5-mini2t(X) 48V	2.0-2.5t 80V	2.0-2.5t 48V	3.0-3.5t 80V	3.0-3.5t 80V
220 (lead acid)	●	-	-	-	-	-
240 (lead acid)	●	-	-	-	-	-
300 (lead acid)	●	-	●	-	-	-
350 (lead acid)	-	-	●	-	-	-
400 (lead acid)	-	-	-	-	●	-
420 (lead acid)	-	●	-	-	-	-
450 (lead acid)	-	-	-	-	●	-
480 (lead acid)	-	-	-	-	●	●
500 (lead acid)	-	●	-	-	-	-
640 (lead acid)	-	-	-	●	-	-
660 (lead acid)	-	-	-	●	-	-

1.5t Mast Specification

Type	Model	Lifting height	Lowered overall height	Overall height		Free lifting height		Tilting range	Capacity(Mast vertical to ground)
				Without backrest	With backrest	Without backrest	With backrest	FWD/BWD	Load center@500mm
									Single Tire	Double Tire
									1.5t	1.5t
		mm	mm	mm	mm	mm	mm	(°)	kg	kg
Duplex wide view mast	XP015M200	2000	1475	2538	2955	135	135	6/12	1500	1500
	XPD15M250	2500	1725	3038	3455	135	135	6/12	1500	1500
	XPD15M270	2700	1825	3238	3655	135	135	6/12	1500	1500
	XP015M300	3000	1975	3538	3955	135	135	6/12	1500	1500
	XPD15M330	3300	2125	3838	4255	135	135	6/12	1500	1500
	XPD15M350	3500	2225	4038	4455	135	135	6/12	1500	1500
	XPD15M360	3600	2325	4138	4555	135	135	6/12	1500	1500
	XP015M370	3700	2375	4238	4655	135	135	6/12	1500	1500
	XP015M400	4000	2575	4538	4955	135	135	6/12	1500	1500
	XP015M430	4300	2725	4838	5255	135	135	6/6	1500	1500
	XPD15M450	4500	2825	5038	5455	135	135	6/6	1500	1500
	XP015M480	4800	2975	5338	5755	135	135	6/6	1400	1500
	XP015M500	5000	3075	5538	5955	135	135	6/6	1350	1400
Duplex full-free mast	XPD15U200	2000	1490	2559	2945	931	545	6/6	1500	1500
	XPD15U250	2500	1740	3059	3445	1181	795	6/12	1500	1500
	XPD15U270	2700	1840	3259	3645	1281	895	6/12	1500	1500
	XPD1SU300	3000	1990	3559	3945	1431	1045	6/12	1500	1500
	XP01SU330	3300	2140	3859	4245	1581	1195	6/12	1500	1500
	XPD15U350	3500	2240	4059	4445	1681	1295	6/12	1500	1500
	XPD15U3G0	3600	2290	4159	4545	1731	1345	6/12	1500	1500
	XPD15U370	3700	2340	4259	4645	1781	1395	6/12	1500	1500
	XPD15U400	4000	2540	4559	4945	1981	1595	6/12	1500	1500
Triplex full-free mast	XPD15N430	4300	2040	4869	5255	1481	1095	6/6	1500	1500
	XPD15N450	4500	2090	5069	5455	1531	1145	6/6	1500	1500
	XPD15N480	4800	2240	5369	5755	1681	1295	6/6	1400	1500
	XPD15N500	5000	2340	5569	5955	1781	1395	6/6	1400	1450
	XP015H550	5500	2540	6069	6455	1981	1595	3/6	1250	1350
	XP015N600	6000	2790	6600	6955	2200	1845	3/6	1100	1150

1.8t Mast Specif/cation

Type	Model	Lifting height	Lowered overall height	Overall height		Free lifting height		Tilting range	Capacity(Mast vertical to ground)
				Without backrest	With backrest	Without backrest	With backrest	FWD/BWD	Load center@500mm
									Single Tire	Double Tire
									1.8t	1.8t
		mm	mm	mm	mm	mm	mm	(°)	kg	kg
Duplex wide view mast	XPD18M200	2000	1475	2648	2955	135	135	6/12	1800	1800
	XPD18M250	2500	1725	3148	3455	135	135	6/12	1800	1800
	XPD18M270	2700	1825	3348	3655	135	135	6/12	1800	1800
	XPD18M300	3000	1975	3648	3955	135	135	6/12	1800	1800
	XPD18M330	3300	2125	3948	4255	135	135	6/12	1800	1800
	XPD18M350	3500	2225	4148	4455	135	135	6/12	1800	1800
	XPD18M360	3600	2325	4248	4555	135	135	6/12	1800	1800
	XPD18M370	3700	2375	4348	4655	135	135	6/12	1800	1800
	XPD18M400	4000	2575	4648	4955	135	135	6/12	1800	1800
	XP018M430	4300	2725	4948	5255	135	135	6/6	1700	1750
	XPD18M450	4500	2825	5148	5455	135	135	6/6	1650	1700
	XP018M480	4800	2975	5448	5755	135	135	6/6	1600	1650
	XPD18M500	5000	3075	5648	5955	135	135	6/6	1550	1600
Duplex full-free mast	XP018U200	2000	1490	2669	2945	821	545	6/6	1800	1800
	XPD18U250	2500	1740	3169	3445	1071	795	6/12	1800	1800
	XPD18U270	2700	1840	3369	3645	1171	895	6/12	1800	1800
	XP018U300	3000	1990	3669	3945	1321	1045	6/12	1800	1800
	XP018U330	3300	2140	3969	4245	1471	1195	6/12	1800	1800
	XP018U350	3500	2240	4169	4445	1571	1295	6/12	1800	1800
	XP018U360	3600	2290	4269	4545	1621	1345	6/12	1800	1800
	XPD18U370	3700	2340	4369	4645	1671	1395	6/12	1800	1800
	XPD18U400	4000	2540	4669	4945	1871	1595	6/12	1800	1800
Triplex full-free mast	XPD18N430	4300	2040	4979	5255	1371	1095	6/6	1650	1800
	XP018N450	4500	2090	5179	5455	1421	1145	6/6	1650	1750
	XP018N480	4800	2240	5479	5755	1571	1295	6/6	1600	1650
	XP018N500	5000	2340	5679	5955	1671	1395	6/6	1550	1600
	XP018N550	5500	2540	6179	6455	1871	1595	3/6	1500	1550
	XP018N600	6000	2790	6679	6955	2121	1845	3/6	1300	1400

2.0t/2.5t Mast Specification

Type	Model	Lifting height	Lowered overall height	Overall height		Free lifting height		Tilting range	Capacity(Mast vertical to ground)
				Without backrest	With backrest	Without backrest	With backrest	FWD/BWD	Load center@500mm
									Single Tire		Double Tire
Duplex wide view mast									2.0t	2.5t	2.0t	2.5t
		mm	mm	mm	mm	mm	mm	(°)	kg	kg	kg	kg
	XPD25M200	2000	1501	2626	3046	140	140	6/6	2000	2500	2000	2500
	XPD25M250	2500	1751	3126	3546	140	140	6/12	2000	2500	2000	2500
	XP025M270	2700	1851	3326	3746	140	140	6/12	2000	2500	2000	2500
	XPD25M300	3000	2001	3626	4046	140	140	6/12	2000	2500	2000	2500
	XPD25M330	3300	2151	3926	4346	140	140	6/12	2000	2500	2000	2500
	XP025M350	3500	2251	4126	4546	140	140	6/12	2000	2500	2000	2500
	XPD25M360	3600	2351	4226	4646	140	140	6/12	2000	2500	2000	2500
	XP025M370	3700	2401	4326	4746	140	140	6/12	2000	2500	2000	2500
	XPD25M400	4000	2601	4626	5046	140	140	6/12	2000	2450	2000	2500
	XPD25M430	4300	2751	4926	5346	140	140	6/6	1950	2300	2000	2450
	XPD25M450	4500	2851	5126	5546	140	140	6/6	1900	2150	1950	2300
	XP025M470	4700	2951	5326	5746	140	140	6/6	1850	2000	1900	2150
	XPD25M480	4800	3001	5426	5846	140	140	6/6	1850	2000	1900	2150
	XP025M500	5000	3101	5626	6046	140	140	6/6	1800	1850	1850	2000
	XPD25M550	5500	3351	6126	6546	140	140	3/6	1300	1400	1600	1900
	XPD25M600	6000	3601	6626	7046	140	140	3/6	900	1000	1400	1750
Duplex full-free mast	XP025U200	2000	1516	2749	3046	842	470	6/6	2000	2500	2000	2500
	XPD25U250	2500	1766	3173.5	3546	1092	720	6/12	2000	2500	2000	2500
	XPD25U270	2700	1866	3373.5	3746	1192	820	6/12	2000	2500	2000	2500
	XRD25U300	3000	2016	3673.5	4046	1342	970	6/12	2000	2500	2000	2500
	XP025U330	3300	2166	3973.5	4346	1492	1120	6/12	2000	2500	2000	2500
	XPD25U350	3500	2266	4173.5	4546	1592	1220	6/12	2000	2500	2000	2500
	XPD25U360	3600	2316	4273.5	4646	1642	1270	6/12	2000	2500	2000	2500
	XPD25U370	3700	2366	4373.5	4746	1692	1320	6/12	2000	2500	2000	2500
Triplex full-free mast	XPD25N400	4000	1966	4670.5	5046	1195	920	6/6	1900	2350	1950	2450
	XPD25N430	4300	2066	4970.5	5346	1295	1020	6/6	1850	2200	1900	2350
	XPD25N450	4500	2116	5170.5	5546	1345	1070	6/6	1800	2050	1850	2200
	XPD25N470	4700	2216	5370.5	5746	1445	1170	6/6	1750	1900	1800	2050
	XPD25N480	4800	2266	5470.5	5846	1495	1220	6/6	1750	1900	1800	2050
	XPD25N500	5000	2366	5670.5	6046	1595	1320	6/6	1700	1750	1800	2050
	XPD25N550	5500	2566	6170.5	6546	1795	1520	3/6	1300	1400	1600	1900
	XP025N600	6000	2816	6670.5	7046	2045	1770	3/6	900	1000	1400	1750
	XPD25N650	6500	3016	7170.5	7546	2245	1970	3/6	/	/	1200	1450
	XPD25N700	7000	3266	7766	8046	2695	2220	3/6	/	/	1000	1150

Short Wheelbase 2.0t Mast Specification

Type	Model	Lifting height	Lowered overall height	Overall height		Free lifting height		Tilting range	Capacity(Mast vertical to ground)
				Without backrest	With backrest	Without backrest	With backrest	FWD/BWD	Load center@500mm
									Single Tire	Double Tire
									Short Wheelbase 2.0t	Short Wheelbase 2.0t
		mm	mm	mm	mm	mm	mm	(°)	kg	kg
Duplex wide view mast	APYX20M200	2000	1475	2648	2955	140	140	6/12	2000	2000
	APYX20M250	2500	1725	3148	3455	140	140	6/12	2000	2000
	APYX20M270	2700	1825	3348	3655	140	140	6/12	2000	2000
	APYX20M300	3000	1975	3648	3955	140	140	6/12	2000	2000
	APYX20M330	3300	2125	3948	4255	140	140	6/12	2000	2000
	APYX20M350	3500	2225	4148	4455	140	140	6/12	2000	2000
	APYX20M360	3600	2325	4248	4555	140	140	6/12	2000	2000
	APYX20M370	3700	2375	4348	4655	140	140	6/12	2000	2000
	APYX20M400	4000	2575	4648	4955	140	140	6/12	2000	2000
	APYX20M430	4300	2725	4948	5255	140	140	6/6	1900	2000
	APYX20M450	4500	2825	5148	5455	140	140	6/6	1850	1900
	APYX20M480	4800	2975	5448	5755	140	140	6/6	1800	1850
	APYX20M500	5000	3075	5648	5955	140	140	6/6	1700	1750
Duplex full-free mast	APYX20U200	2000	1490	2669	2945	826	550	6/6	2000	2000
	APYX20U250	2500	1740	3169	3445	1076	800	6/12	2000	2000
	APYX20U270	2700	1840	3369	3645	1176	900	6/12	2000	2000
	APYX20U300	3000	1990	3669	3945	1326	1050	6/12	2000	2000
	APYX20U330	3300	2140	3969	4245	1476	1200	6/12	2000	2000
	APYX20U350	3500	2240	4169	4445	1576	1300	6/12	2000	2000
	APYX20U360	3600	2290	4269	4545	1626	1350	6/12	2000	2000
	APYX20U370	3700	2340	4369	4645	1676	1400	6/12	2000	2000
	APYX20U400	4000	2540	4669	4945	1876	1600	6/12	2000	2000
Triplex full-fre mast	APYX20N430	4300	2040	4979	5255	1376	1100	6/6	1850	1950
	APYX20N450	4500	2090	5179	5455	1426	1150	6/6	1800	1900
	APYX20N480	4800	2240	5479	5755	1576	1300	6/6	1750	1850
	APYX20N500	5000	2340	5679	5955	1676	1400	6/6	1700	1800
	APYX20N550	5500	2540	6179	6455	1876	1600	3/6	1650	1750
	APYX20N600	6000	2790	6679	6955	2126	1850	3/6	1450	1500

3.0t/3.5t Mast Specification

Type	Model	Lifting height	Lowered overall height	Overall height		Free lifting height		Tilting range	Capacity(Mast vertical to ground)
				Without backrest	With backrest	Without backrest	With backrest	FWD/BWD	Load center@500mm
									Single Tire		Double Tire
									3.0t	3.5t	3.0t	3.5t
		mm	mm	mm	mm	mm	mm	(°)	kg	kg	kg	kg
Duplex wide view mast	APY35M200	2000	1665	2856	3159	145	150	6/6	3000	3500	3000	3500
	APY35M250	2500	1915	3356	3659	145	150	6/12	3000	3500	3000	3500
	APY35M270	2700	2015	3556	3859	145	150	6/12	3000	3500	3000	3500
	APY35M300	3000	2165	3856	4159	145	150	6/12	3000	3500	3000	3500
	APY35M330	3300	2315	4156	4459	145	150	6/12	3000	3500	3000	3500
	APY35M360	3600	2465	4456	4759	145	150	6/12	3000	3500	3000	3500
	APY35M400	4000	2765	4856	5159	145	150	6/12	3000	3450	3000	3450
	APY35M430	4300	2915	5156	5459	145	150	6/6	2850	3300	3000	3300
	APY35M450	4500	3015	5356	5659	145	150	6/6	2700	3150	2850	3150
	APY35M480	4800	3165	5656	5959	145	150	6/6	2550	3000	2700	3000
	APY35M500	5000	3265	5856	6159	145	150	6/6	2400	2850	2550	2850
	APY35M550	5500	3515	6356	6659	145	150	3/6	1850	2200	2400	2650^
	APY35M600	6000	3765	6856	7159	145	150	3/6	1400	1650	2200	2400
Duplex full-free mast	APY35U250	2500	1930	3405	3659	1025	771	6/12	3000	3500	3000	3500
	APY35U270	2700	2030	3605	3859	1125	871	6/12	3000	3500	3000	3500
	APY35U300	3000	2180	3905	4159	1275	1021	6/12	3000	3500	3000	3500
	APY35U330	3300	2380	4205	4459	1425	1171	6/12	3000	3500	3000	3500
	APY35U360	3600	2480	4505	4759	1575	1321	6/12	3000	3500	3000	3500
	APY35U400	4000	2730	4905	5159	1825	1571	6/12	3000	3450	3000	3450
Triplex full-fre mast	APY35N400	4000	2065	4905	5159	1160	906	6/6	2900	3350	3000	3350
	APY35N430	4300	2165	5205	5459	1260	1006	6/6	2750	3200	2900	3200
	APY35N450	4500	2215	5505	5659	1310	1056	6/6	2600	3050	2750	3050
	APY35N470	4700	2315	5605	5859	1410	1156	6/6	2450	2900	2600	2900
	APY35N480	4800	2365	5705	5959	1460	1206	6/6	2450	2900	2600	2900
	APY35N500	5000	2465	5905	6159	1560	1306	6/6	2300	2750	2600	2900
	APY35N550	5500	2665	6405	6659	1760	1506	3/6	1850	2200	2400	2650
	APY35N600	6000	2915	6905	7159	2010	1756	3/6	1400	1650	2200	2400
	APY35N650	6500	3165	6905	7659	2260	2006	3/6	/	/	1700	1850
	APY35N700	7000	3415	7905	8159	2510	2256	3/6	/	/	1200	1300
