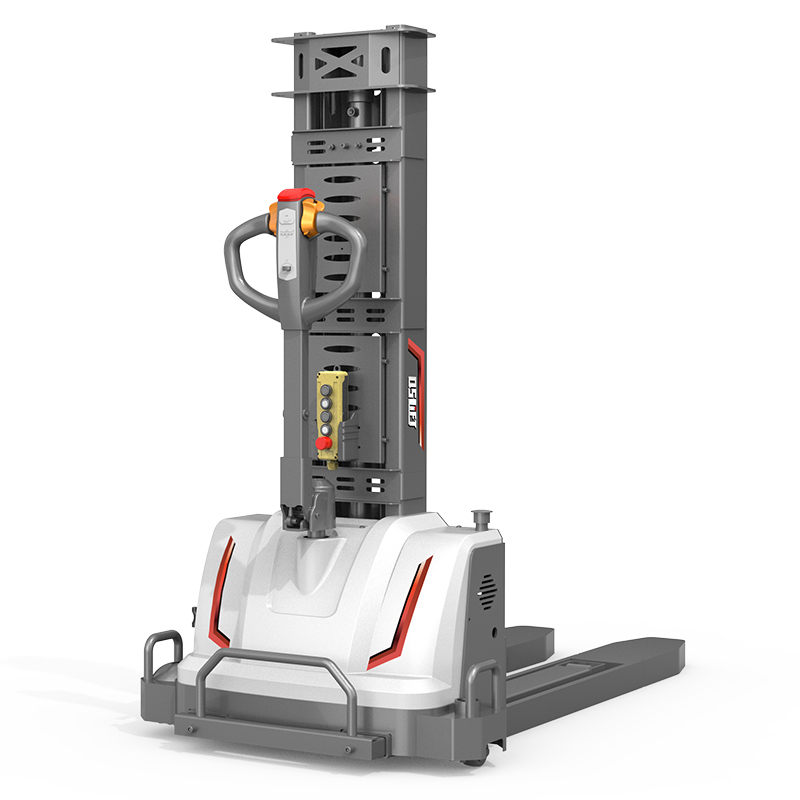

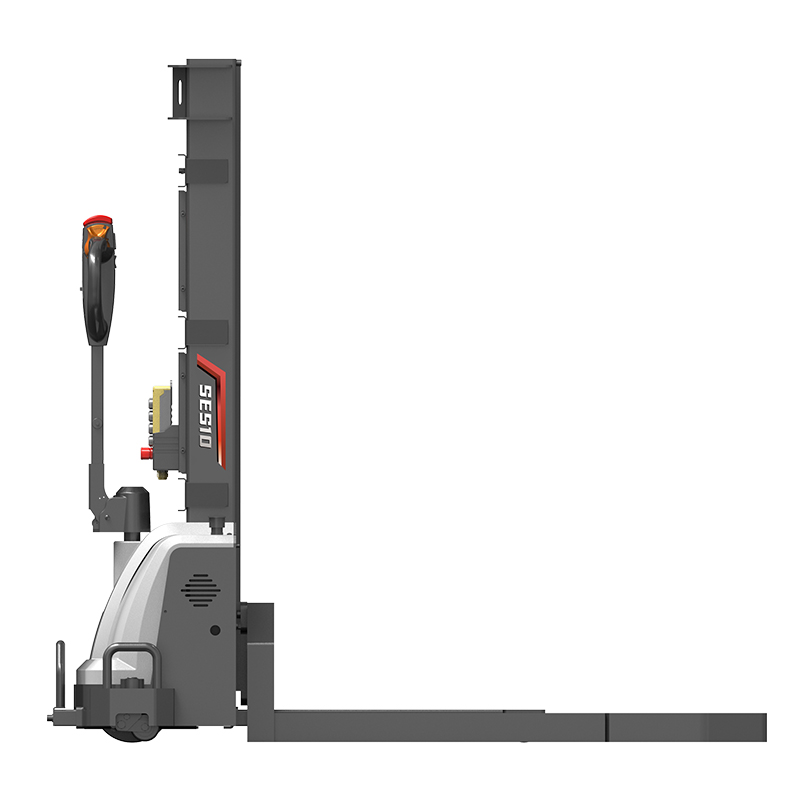

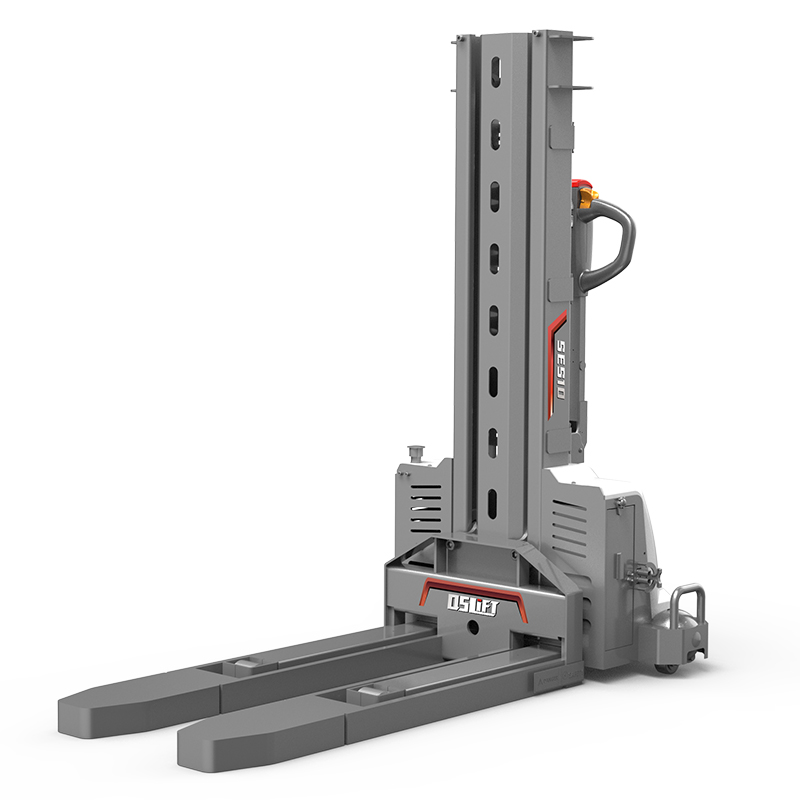

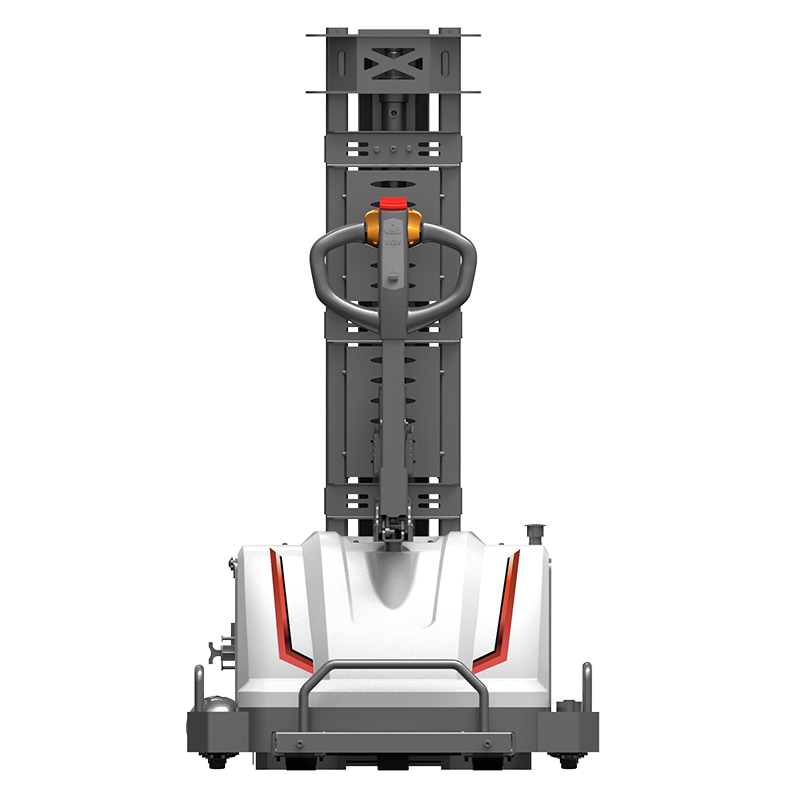

SES10/12 Full Electric
Self-lifting Stacker
Capacity:1000kg/1200kg Lifting height: 800-1500mm
Canbus Multifunction Intelligent handle Option Turtle speed /Upright working/ Battery indicator/ Error code indicator/Maintenance Friendly.
INTRODUCTION

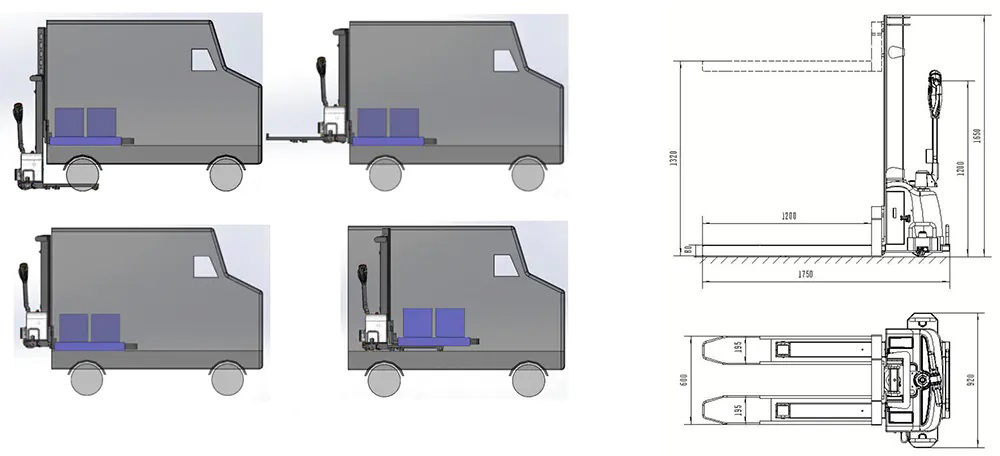

The SES10&12 was created to facilitate movement on freight trucks, bringing high efficiency and effortless pallet lifting and movement. lt is available in capacities of 1000 kg and 1200 kg and lifting heights from 800 mm to 1500 mm. The compact and light design is suitable for a variety light duty applications.
Specification
| 1.1 | Model | SES10 | SES12 | |
| Characteristic | 1.2 | Power Type | Electric | Electric |
| 1.3 | Drive Type | Pedestrain | Pedestrain | |
| 1.4 | Capacity Q(kg) | 1000 | 1200 | |
| 1.5 | Load Centre c(mm) | 400 | 400 | |
| 3.1 | Material of Wheel | Polyurethane | Polyurethane | |
| Wheel | 3.2 | Size of Drive wheel | Φ190x70 | Φ190x70 |
| 3.3 | Size of balance roller | Φ75X35 | Φ75X35 | |
| 3.4 | Size of load roller | Φ80X70 | Φ80X70 | |
| 4.1 | Lifting Height h3(mm) | 900/1100/1300/1500 | 900/1100/1300/1500 | |
| Size | 4.2 | Min Mast Height h1(mm) | 1250/1450/1650/1850 | 1250/1450/1650/1850 |
| 4.3 | Height when Working h4(mm) | 2480/2680/2880/3080 | 2480/2680/2880/3080 | |
| 4.4 | Min Fork Height h13(mm) | 85 | 85 | |
| 4.5 | Overall Length I1(mm) | 1730 | 1730 | |
| 4.6 | Fork Size S/E/L(mm) | 60/195/1200 | 60/195/1200 | |
| 4.7 | Fork Width b5(mm) | 600 | 600 | |
| 4.8 | Ground Clearance m2(mm) | 10 | 10 | |
| 5.1 | Gradeability， loaden/unloaden % | 3-5 | 3-5 | |
| Performance | 5.2 | Brake | Electromagnetic Brake | Electromagnetic Brake |
| 5.3 | Power of Drive Motor kW | 0.75 | 0.75 | |
| 5.4 | Power of Lifting Motor kW | 2 | 2 | |

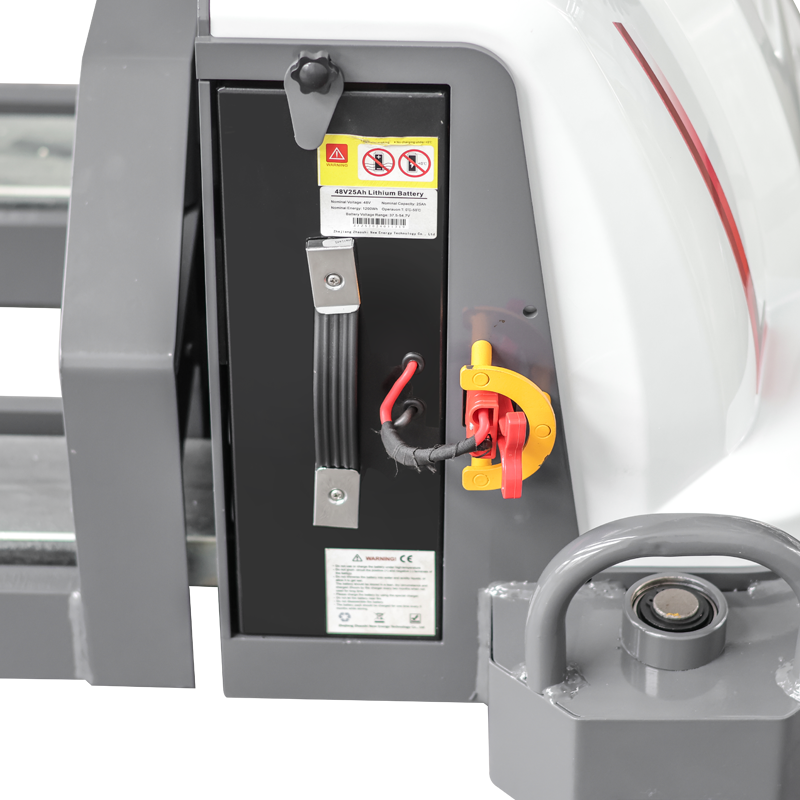

| 5.5 | Battery capacity V/Ah | 48v/25ah (30AH As Option) | 48v/25ah (30AH As Option) | |
| 5.6 | Weight of battery Kg | 30 | 30 | |
| 5.7 | Steering Power | Mechanical | Mechanical |
