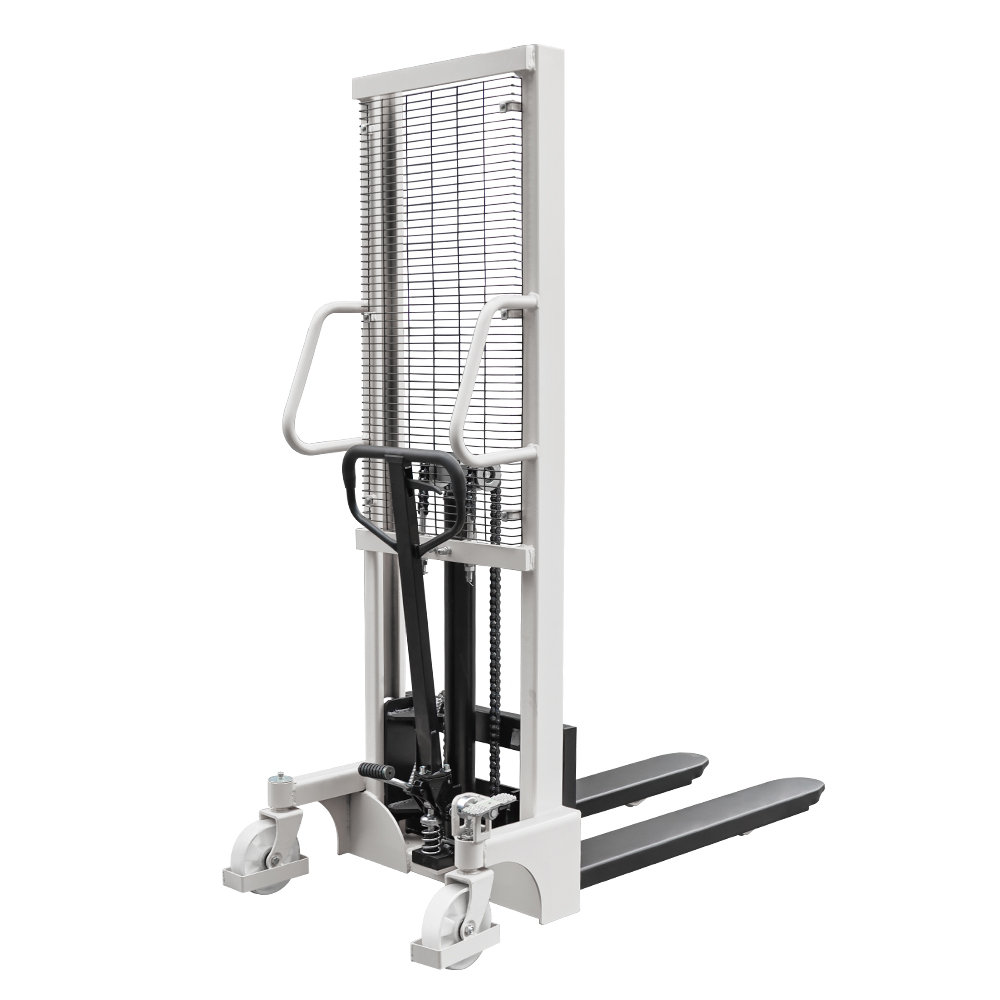

Ideal and economic choice for manual transport and lifting，with its different mast options（1600.2500，3000mm）and diverse lifting capacity（500kg，1000kg，1500kg，2000kg）enables to deal with a large number of applications in the warehouse or any other facilities，For example，with the lift capacity of 1000kg and lifting height of 1600mm，therefore the truck is an ideal and economic choice suitable or first level stacking.
Advantages
It applies Cype steel structure design，lifting more stable and safe

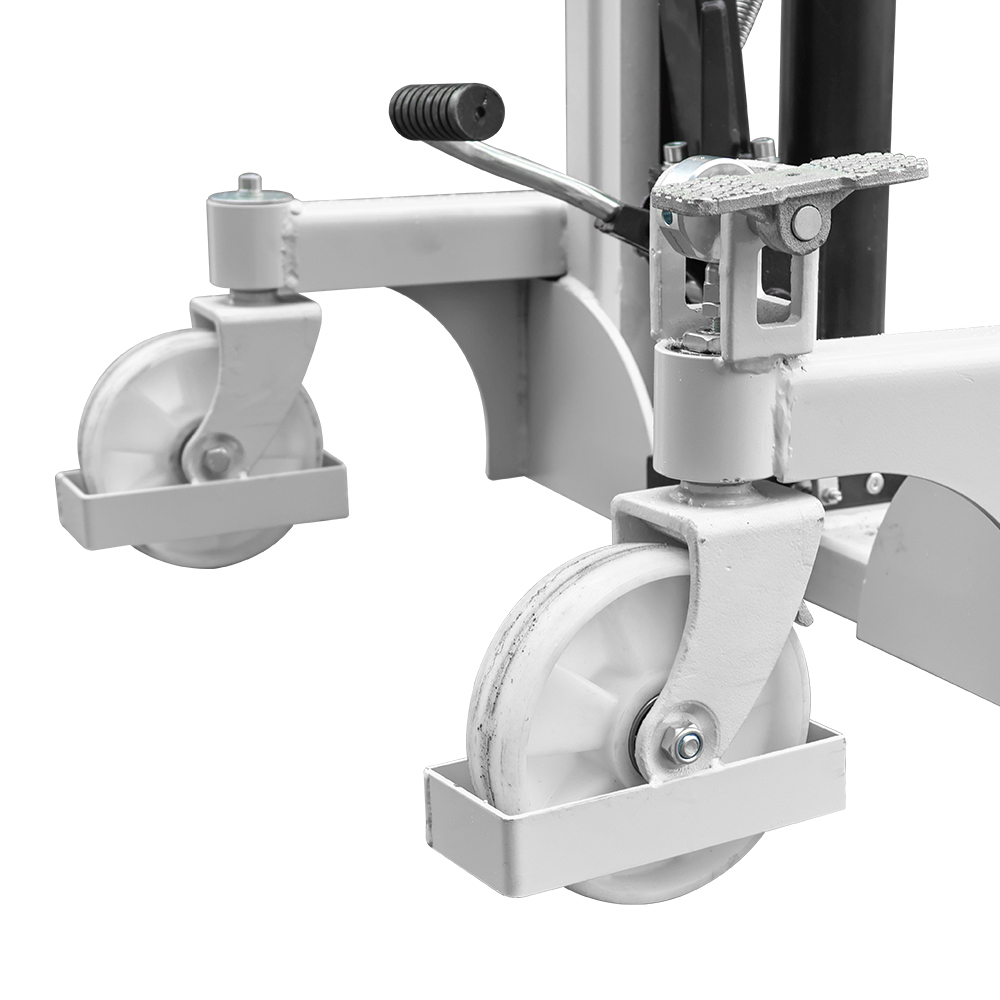

All Manual stacker have been equipped with wheel frame protec-tion device
The handle have been surround with rubber.With lengthening design，Using more comfortable

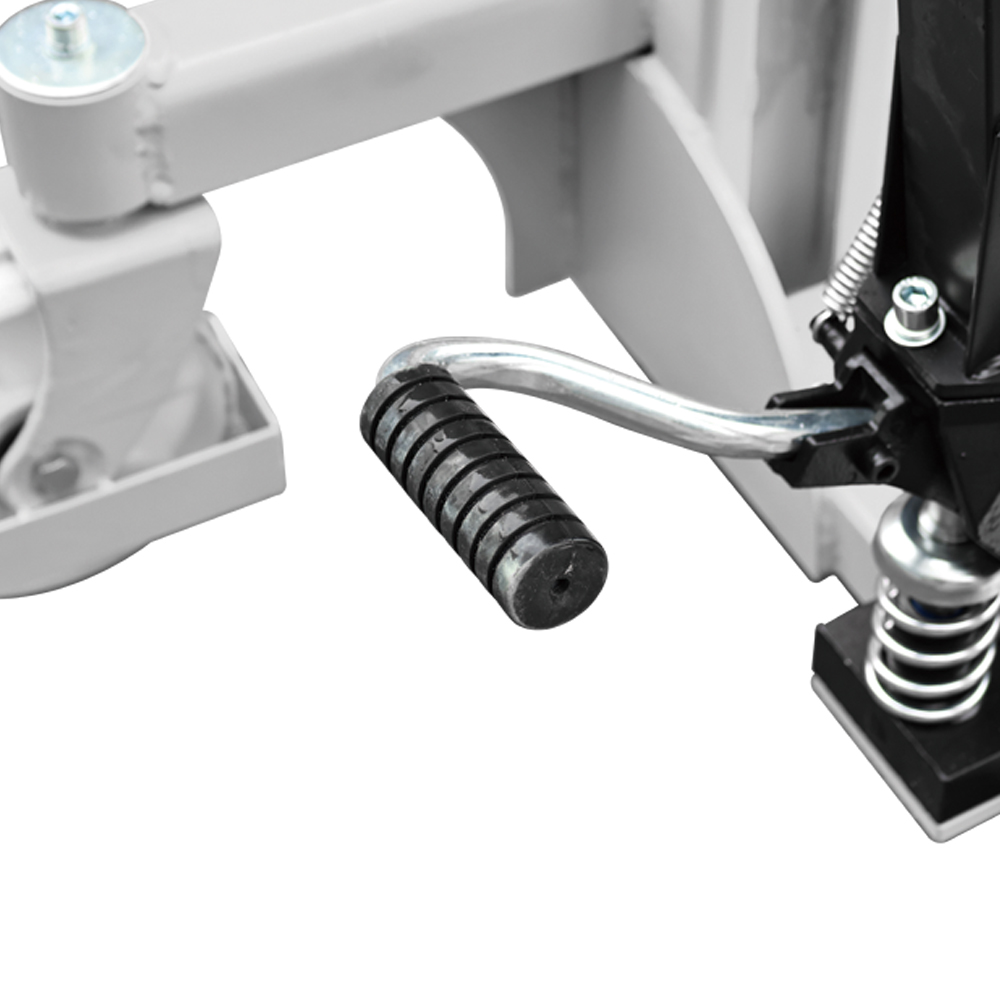

Single mast series is with Two ways to unload by manual and pedal using more flexible
Fork with adjustable nut，it can easy to adjust the fork height
Wheel frame equipped with grease fitting design，it will help do routine maintenance for bearing
There are too many kinds of fork types，fixed fork，adjusting fork，also with the adjusting wide leg or fixed wide leg
Single Frame Series
| Item | Unit | Model | |||
| QMS0512 | QMS1016 | QMS1516 | QMS2016 | ||
| Capacity | kg | 500 | 1000 | 1500 | 2000 |
| Lifting height | mm | 1200 | 1600 | 1600 | 1600 |
| Min. Height | mm | 85 | 85 | 85 | 85 |
| Length of fork | mm | 800 | 1000/1150 | 1000/1150 | 1000/1150 |
| Width of fork | mm | 330-590/550 | 330-740/550 | 330-740/550 | 330-740/550 |
| Size of Front wheel | mm | φ80x58 | φ80x58 | φ80x58 | φ80x58 |
| Size of load roller | mm | φ150x35 | φ180x50 | φ180x50 | φ180x50 |
| Size of stacker | mm | 1300X760X1540 | 1600X760X2030 | 1600X760X2030 | 1600X760X2030 |
| Net Weight | kg | 100 | 224 | 240 | 270 |
Double Frame Series
| Item | Unit | Model | ||||||
| QMS1020 | QMS1025 | QMS1030 | QMS1520 | QMS1525 | QMS1530 | QMS2020 | ||
| Capacity | kg | 1000 | 1000 | 1000 | 1500 | 1500 | 1500 | 2000 |
| Lifting height | mm | 2000 | 2500 | 3000 | 2000 | 2500 | 3000 | 2000 |
| Min. Height | mm | 85 | 85 | 85 | 85 | 85 | 85 | 85 |
| Length of fork | mm | 1000/1150 | 1000/1150 | 1000/1150 | 1000/1150 | 1000/1150 | 1000/1150 | 1000/1150 |
| Width of fork | mm | 330-740/550 | 330-740/550 | 330-740/550 | 330-740/550 | 330-740/550 | 330-740/550 | 330-740/550 |
| Size of Front wheel | mm | φ74x70 | φ74x70 | φ74x70 | φ74x70 | φ74x70 | φ74x70 | φ74x70 |
| Size of load roller | mm | φ180x50 | φ180x50 | φ180x50 | φ180x50 | φ180x50 | φ180x50 | φ180x50 |
| Size of stacker | mm | 1600X760X1580 | 1600X760X1840 | 1600X760X2080 | 1600X760X1580 | 1600X760X1840 | 1600X760X2080 | 1600X760X1580 |
| Net Weight | kg | 100 | 224 | 240 | 270 | |||
