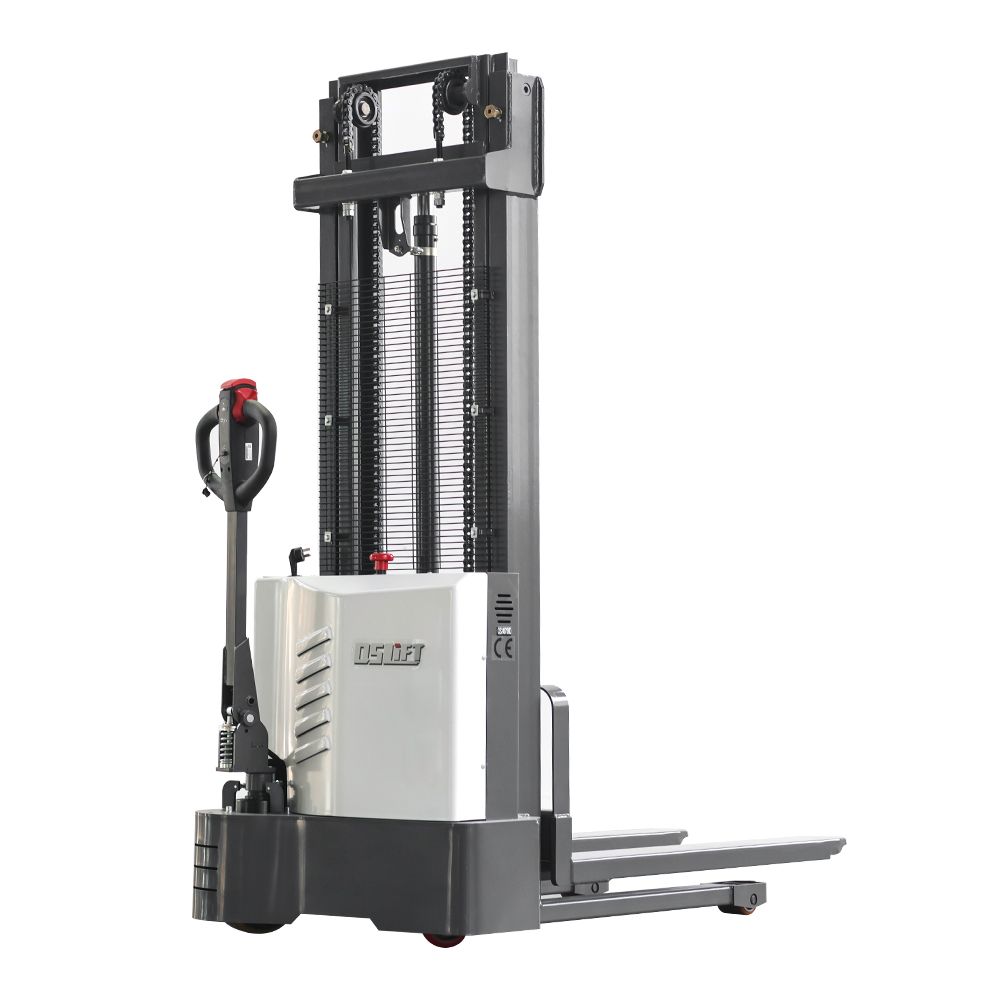

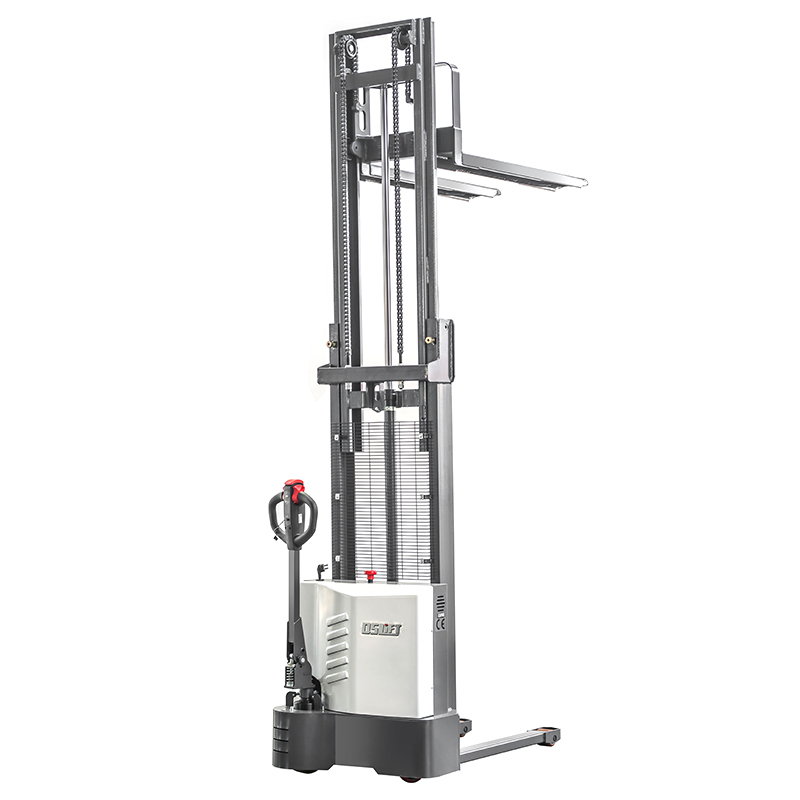

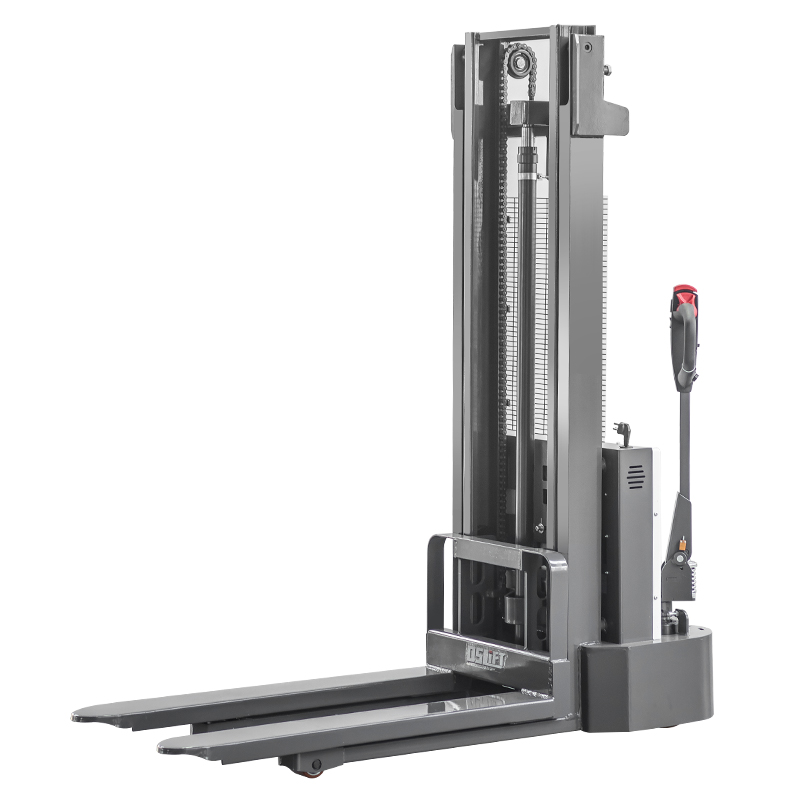

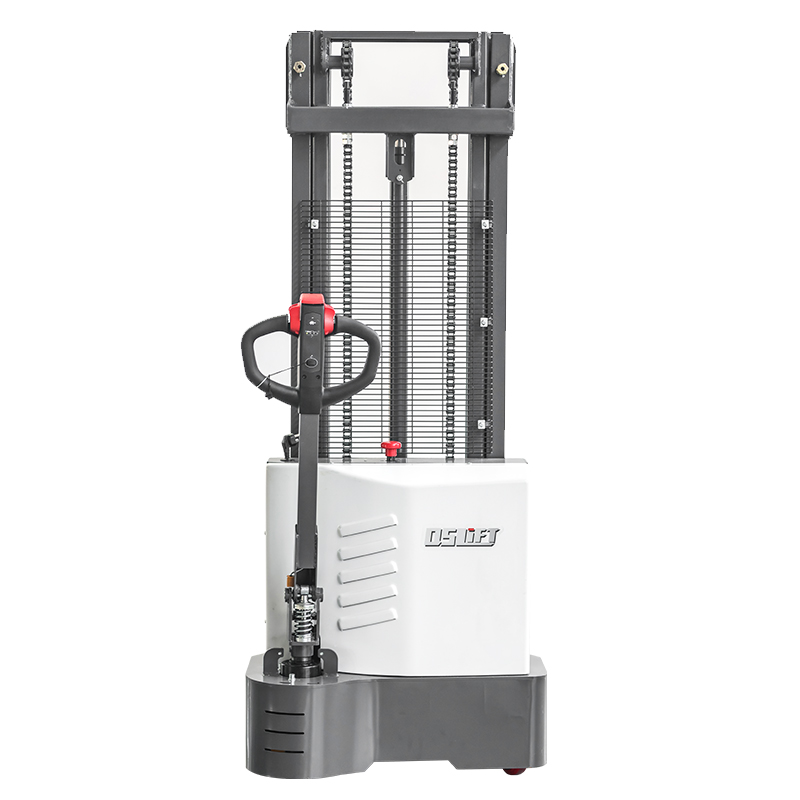

Electric Walkie Stacker for Light-duty Applications

QES1016/E / QES1020/E / QES1025/E / QES1030/E / QES1033/E / QES1035/E

Get a Quote

The QES Series is an economical long -tiller pallet stacker, with the rated load capacity of 1000kg and 1500kg, lifting height from 1600mm to 3500mm, it meets customers' demands for increasing economic performance, handling efficiency and safety.

High maneuverable, economical and practical design, it can fully meets customers' demands.

With compact design it's turning radius is smaller than conventional stackers, which is more suitable for small stacking warehouse operation.

Long-tiller design meets the requirements of ergonomics and safety Long tiller stacker uses less operating force, compared with the short tiller stacker.

Long tiller design ensure the operators high efficiency and safe distance from stacker -body.

Height is adjustable according to operators operating habits and height preference.

4-wheel design with side ways long-tiller gives operators a better view to the pallet.

The safety distance and good view makes stacking operation more efficient and faster.

Emergency button

Emergency switcch located where you can easily reach and control, assuring safety for people and truck

Code lock handle for option

Operator system

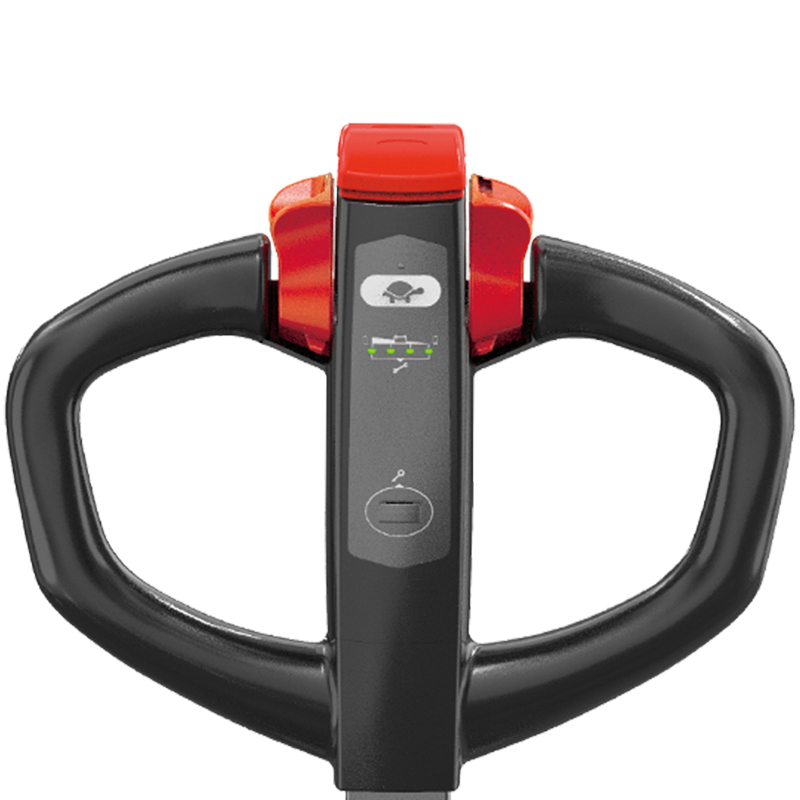

Canbus handle

Turtle speed button Smart Pin code

Access, Battery discharge indicator

On-board diagnostics via error codes

QSLIFT Electric walkie Stacker for Light-duty Applications

1kg=2.2lb 1inch=25.4mm

Model			QES1016/E	QES1020/E	QS1025/E	QES1030/E	QES1033/E	QES1035/E
Characteristics	Driver		Horizontal
	Operator Type		Pedestrian
	Capacity	Kg	1000
	Load Centre	mm	600
	Wheel base	mm	1275
Weight	N.W. (Exc.Battery)	kg	450	480	500	520	530	560
Weight	N.W.(lnc.Battery)	kg	500	530	550	570	580	610
Wheel	Material of wheel		PU
	SiZe of Load roller	mm	Φ80
	Size of drive wheel	mm	Φ210
	Size of Balance wheel	mm	124
	Number of wheels	psc	4
Specifications	Min. Mast height	mm	2010	1530	1780	2030	2180	2280
	Max.Mast height	mm	-2010	-2490	-2990	-3490	-3790	-3990
	Lifting height	mm	1600	2000	2500	3000	330。	3500
	Total Length	mm	-1745	-1750	-1750	-1750	-1750	-1750
	Width of single fork	mm	160
	Width of stacker	mm	820
	Length of fork	mm	1125
	Width of fork	mm	680
	Min.Height of fork	mm	90
	Ground clearance	mm	30
	Turning Radius (Be. Handle)	mm	-1465	-1470	-1470	-1470	-1470	-1470
	Height of stacker body	mm	760
	Min. Right-angle stack channel width, (palet size 800X1200,1200 placed along cargo Ibrk)	mm	2230
	Min. Right-angle stack channel width, (palet size 1000X1200, 1200 placed abng cargo Ibrk)	mm	2305
Performance	Drwe Speed wMVwithout bading	Km/h	2.5/3.0
	Lifting Speed with/without badhg	mn/s	100/112
	Lowering Speed withAvithout Loading	mm/s	92/85
	Gradeabiity (go through % ramp/obstacle)	%	5/7
Electric engrie	Power of Drive Motor	kW	0.75
	Power of Lifting Motor	kW	2.2
	Capacity of Battery	V/Ah	Q2V/75Ah)×2
	Size of Battery (L×W×H)	mm	(260×172×214)×2
	Brake		Electromagnetic Brake
	Controller		1212P-2501Curtis

1kg=2.2lb 1inch=25.4mm

Model			QES1516	QES1520	QES1525	QES1530	QES1533	QES1535
Characteristics	Driver		Horizontal
	Operator Type		Pedestrian
	Capacity	Kg	1500
	Load Centre	mm	600
	Wheelbase	mm	1275
Weight	N.W. (Exc.Battery)	kg	470	500	520	540	550	560
Weight	N.W.(lnc.Battery)	kg	520	550	570	590	600	610
Wheel	Material of wheel		PU
	SiZe of Load roller	mm	Φ80
	Size of drive wheel	mm	Φ210
	Size of Balance wheel	mm	124
	Number of wheels	psc	4
Specifications	Min. Mast height	mm	2010	1530	1780	2030	2180	2280
	Max.Mast height	mm	-2010	-2490	-2990	-3490	-3790	-3990
	Lifting height	mm	1600	2000	2500	3000	3300	3500
	Total Length	mm	-1745	-1750	-1750	-1750	-1750	-1750
	Width of single fork	mm	160
	Width of stacker	mm	820
	Length of fork	mm	1125
	Width of fork	mm	680
	Min.Height of fork	mm	90
	Ground clearance	mm	30
	Tumiig Radius (Bxc. Handle)	mm	-1465	-1470	-1470	-1470	-1470	-1470
	Height of stacker body	mm	760
	Mr. Right-angle stack channel width, (pallet size 800×1200,1200 placed abng cargo fork)	mm	2230
	Mr. Right-angle stack channel width, (pallet size 1000×1200, 1200 placed along cargo 1brk)	mm	2305
Performance	Drive Speed withAwithoiit badng	KnVh	2.5/3.0
	Lifthg Speed with/without loading	mm/s	100/112
	Lowemg Speed wih/without Loadhg	mm/s	92/85
	Gradeabiity (go through 9i ramp/obstacle)	%	5/7
Electric engine	Power of Drive Motor	kW	0.75
	Power of Lifting Motor	kW	2.2
	Capacity of Battery	V/Ah	(12V/75Ah)×2
	Size of Battery (L×W×H)	mm	(260×172×214)×2
	Brake		Electromagnetic Brake
	Controller		1212P-2501Curtis
